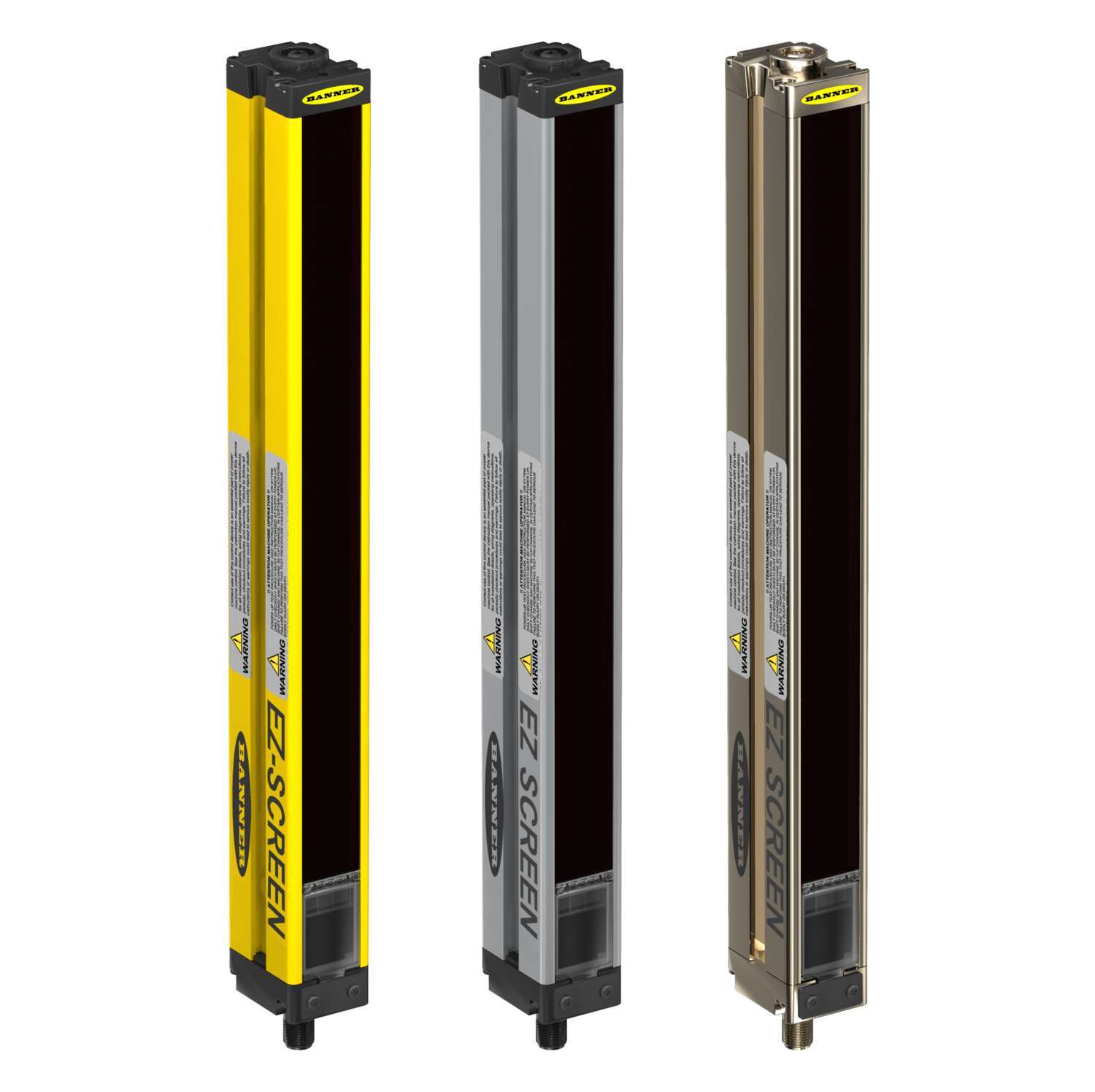

Safety Light Curtains

Description

Safety Light Curtains Manufacturer & Supplier in India

Industrial workplaces are becoming faster, smarter, and more automated. While advanced machinery boosts productivity, it also introduces potential risks for machine operators working near hazardous equipment. Protecting personnel without compromising production efficiency has become a top priority for manufacturers across industries. This is where Safety Light Curtains play a critical role.

Genesis Industrial Solutions is a trusted Safety Light Curtains manufacturer and supplier in India, delivering advanced machine safety solutions that help industries create safer, more productive work environments. Our range of Type 2 Safety Light Curtains and Type 4 Safety Light Curtains is engineered to provide dependable protection for operators working with high-speed, automated, and hazardous machinery.

Designed with precision infrared sensing technology, our Machine Safety Light Curtains create an invisible protective barrier around dangerous machine zones. When a person, hand, finger, or object interrupts the light beams, the system instantly sends a safety signal to stop the machine before an accident can occur. This enables businesses to comply with international machine safety standards while maintaining uninterrupted workflow.

Whether you operate automotive production lines, robotic cells, CNC machining centres, hydraulic presses, packaging systems, pharmaceutical equipment, or material handling systems, our Industrial Safety Curtains deliver reliable presence detection and operator protection without limiting machine accessibility.

Genesis Industrial Solutions supplies multiple models, including LS2TP30-300Q88, LS2TP30-450Q88, LS2TP30-600Q88, LS2TE30, and LS2TR30, offering solutions for different protection heights, safety requirements, and industrial applications.

Our experienced technical team assists customers in selecting the most suitable Safety Protection System based on machine type, risk assessment, installation environment, and applicable safety standards. From product selection and installation guidance to after-sales support, we provide complete industrial automation safety solutions for customers across India.

What Are Safety Light Curtains?

A Safety Light Curtain is an advanced presence detection safety sensor designed to safeguard machine operators from hazardous moving parts. Unlike traditional physical barriers, safety light curtains create a non-contact protective field using synchronised infrared transmitters and receivers.

These systems continuously monitor the protected area. As long as every infrared beam reaches the receiver, machinery operates normally. The instant any beam is interrupted, the safety controller or machine safety relay initiates a controlled machine stop according to the machine’s safety function.

Because there is no physical guard restricting access, operators can load materials, unload finished products, or perform inspections more efficiently while maintaining a high level of safety.

Modern manufacturing facilities rely heavily on Machine Guarding Systems that combine safety light curtains with safety relays, safety PLCs, emergency stop devices, interlock switches, and area scanners to achieve comprehensive machine protection.

Why Are Safety Light Curtains Important?

Industrial accidents can result in severe injuries, production losses, legal liabilities, and equipment damage. Many incidents occur when operators unintentionally enter hazardous machine zones during operation.

A properly selected Machine Safety Light Curtain helps minimise these risks by providing continuous monitoring of dangerous access points.

Key reasons industries install safety light curtains include:

• Protect machine operators from hazardous moving equipment.
• Reduce workplace injuries and downtime.
• Improve machine accessibility without compromising safety.
• Support compliance with international safety regulations.
• Increase production efficiency compared to physical guarding.
• Reduce machine restart delays.
• Enhance operational reliability.
• Support modern factory automation initiatives.

Today, safety light curtains have become an essential component of industrial safety systems in smart factories, automated production lines, and robotic manufacturing cells.

How Do Safety Light Curtains Work?

The operating principle of a Photoelectric Safety Curtain is based on infrared beam transmission between a transmitter and a receiver.

Step 1 – Infrared Beam Generation

The transmitter unit emits multiple parallel infrared light beams across the protected area. These beams are precisely aligned to form an invisible safety field.

The number of beams depends on the required protection level and detection resolution. Higher beam density enables the system to detect smaller objects, such as fingers or hands.

Step 2 – Continuous Beam Monitoring

The receiver continuously monitors every transmitted infrared beam.

As long as all beams are detected correctly, the receiver confirms that the protected area remains clear and sends a safe operating signal to the machine control system.

Step 3 – Object Detection

When a person, hand, finger, arm, or other object enters the detection field, one or more infrared beams are interrupted.

The interruption is detected within milliseconds.

Step 4 – Safety Output Activation

Once the interruption is verified, the safety outputs (typically OSSD outputs) immediately change state.

These outputs communicate with:

• Safety Relay
• Safety PLC
• Machine Controller
• Emergency Stop Circuit

Step 5 – Machine Stop

The connected machine initiates a controlled stop before the operator can reach the hazardous moving components.

This rapid response significantly reduces the likelihood of serious injuries.

Simplified Working Process of Safety Light Curtains

Stage	Function
Transmitter	Emits multiple infrared beams
Receiver	Monitors beam continuity
Detection	Identifies beam interruption
Safety Logic	Changes OSSD output status
Machine Controller	Receives safety signal
Machine	Stops hazardous movement safely

Main Components of a Safety Light Curtain

1. Transmitter Unit

The transmitter contains high-performance infrared LEDs that generate a series of parallel light beams across the protected zone.

Its design ensures stable beam alignment even in challenging industrial environments.

2. Receiver Unit

The receiver continuously analyses incoming infrared signals.

Advanced filtering technology helps eliminate false triggering caused by ambient light, electrical noise, or industrial interference.

3. OSSD Outputs

Output Signal Switching Devices (OSSD) are dual-channel safety outputs that communicate directly with safety relays or safety PLCs.

These outputs continuously monitor system integrity and immediately switch to a safe state if a fault or obstruction is detected.

4. Safety Controller

The safety controller processes the OSSD signals and determines whether machine operation is permitted.

If an unsafe condition exists, it initiates a machine stop in accordance with the machine’s safety design.

5. Mounting Accessories

Proper mounting brackets and alignment accessories ensure accurate installation, reliable performance, and long-term stability.

Key Advantages of Using Safety Light Curtains

Replacing traditional physical barriers with a Machine Safety Light Curtain offers several operational and safety benefits.

Enhanced Worker Protection

Operators remain protected while maintaining convenient access to machinery.

Improved Productivity

Loading, unloading, and machine setup become faster because no physical guard requires opening or closing.

Reduced Machine Downtime

Automatic detection and rapid reset reduce unnecessary production delays.

Better Machine Accessibility

Maintenance personnel can perform routine inspections more efficiently.

Flexible Machine Design

Safety light curtains adapt easily to different machine sizes and layouts.

Lower Maintenance Requirements

With no moving mechanical guarding components, routine maintenance is simplified.

Long-Term Cost Savings

Preventing workplace accidents reduces compensation costs, equipment damage, and production interruptions.

Types of Safety Light Curtains

Selecting the appropriate safety light curtain depends on the machine’s risk level, operating speed, stopping distance, and applicable safety requirements.

The two most widely used categories are Type 2 Safety Light Curtains and Type 4 Safety Light Curtains.

Type 2 Safety Light Curtains

Type 2 Safety Light Curtains are designed for machinery with moderate safety risks where the overall risk assessment permits their use.

They provide reliable operator protection for applications where the consequences of machine hazards are comparatively lower than those requiring the highest level of functional safety.

Type 2 light curtains comply with applicable functional safety requirements and are commonly used in controlled industrial environments where risk reduction measures are implemented alongside the light curtain.

Features of Type 2 Safety Light Curtains

• Reliable infrared beam detection
• Compact and lightweight construction
• Fast response time
• Stable sensing performance
• Easy alignment
• LED status indicators
• High resistance to electrical interference
• Durable aluminium housing
• Low maintenance requirements
• Simple integration with machine controls

Advantages

• Cost-effective machine safeguarding
• Improved operator access
• Faster production cycles
• Easy installation
• Reliable detection performance
• Suitable for medium-risk applications
• Reduced maintenance costs

Typical Applications

Type 2 Safety Light Curtains are widely used in:

• Conveyor systems
• Packaging machinery
• Small assembly machines
• Material handling equipment
• Semi-automatic production lines
• Inspection stations
• Textile machinery
• Printing equipment

Industries

Common industries include:

• Packaging
• Textile
• Consumer Goods
• Electronics Assembly
• Food Packaging
• Logistics
• Light Manufacturing

Type 4 Safety Light Curtains

Type 4 Safety Light Curtains provide the highest level of electro-sensitive protective equipment for machine safeguarding. They are specifically developed for high-risk applications where operator safety is critical and rapid hazard detection is essential.

These systems are widely used on dangerous machinery capable of causing serious injury, including robotic work cells, hydraulic presses, CNC machining centres, automated welding stations, and high-speed manufacturing equipment.

When integrated into a correctly designed safety system, Type 4 Safety Light Curtains support compliance with internationally recognised machine safety requirements and are suitable for applications requiring high functional safety performance.

Key Features

• Highest level of personnel protection
• Advanced self-monitoring diagnostics
• High-speed response for rapid hazard detection
• Dual-channel safety outputs (OSSD)
• High immunity to ambient light and electrical interference
• Reliable operation in demanding industrial environments
• Compact housing for easy integration
• Continuous internal fault monitoring
• Stable performance over extended operating life
• Suitable for complex automated machinery

Benefits

• Helps protect operators working near hazardous equipment
• Supports reduced workplace accidents
• Minimises unplanned production downtime
• Enables efficient machine access without physical barriers
• Enhances compliance with recognised functional safety practices
• Improves productivity while maintaining operator safety
• Suitable for advanced factory automation and robotic systems

Common Applications

Type 4 Safety Light Curtains are commonly installed on:

• Robotic welding cells
• CNC machining centres
• Hydraulic press machines
• Power press equipment
• Automated assembly lines
• High-speed packaging machines
• Palletising systems
• Material handling equipment
• Laser processing machines
• Automotive production lines

Industries Using Type 4 Safety Light Curtains

These systems are trusted across a wide range of industries, including:

• Automotive Manufacturing
• Heavy Engineering
• Aerospace
• Pharmaceutical Manufacturing
• Food & Beverage Processing
• Electronics Manufacturing
• Metal Fabrication
• Plastic Injection Moulding
• Logistics & Warehousing
• Industrial Automation

Why Choose Genesis Industrial Solutions for Safety Light Curtains?

At Genesis Industrial Solutions, we understand that machine safety is not simply about meeting regulations—it’s about protecting people, maintaining productivity, and ensuring long-term operational reliability.

Our Safety Light Curtains are selected to deliver dependable performance in demanding industrial environments. Backed by technical expertise, responsive customer support, and pan-India supply capabilities, we help manufacturers choose solutions that align with their machinery, operational requirements, and safety objectives.

Product Models of Safety Light Curtain

Genesis Industrial Solutions offers a versatile range of Safety Light Curtains designed to meet the safety requirements of various industrial machines. Whether you need hand protection for compact workstations or extended safeguarding for automated production lines, our product range provides dependable performance, quick response, and easy integration with modern control systems. Our portfolio includes LS2TP30-300Q88, LS2TP30-450Q88, LS2TP30-600Q88, LS2TE30, and LS2TR30 models.

LS2TP30-300Q88 Safety Light Curtain

The LS2TP30-300Q88 is a Type 2 Safety Light Curtain designed for hand and arm protection in lower-risk machine guarding applications. It features a 300 mm protected height, 30 mm resolution, and an operating range of up to 15 metres, making it suitable for compact machinery and operator access points.

Key Features

• 30 mm hand detection resolution
• 300 mm protective height
• Fast response for reliable machine stopping
• Compact aluminium housing
• Dual OSSD safety outputs
• 24 V DC operation
• IP65-rated enclosure
• High resistance to vibration and electrical interference
• Easy installation with M12 quick-disconnect connectors
• Suitable for continuous industrial operation

Typical Applications

• Conveyor systems
• Assembly workstations
• Pick-and-place machines
• Packaging equipment
• Electronics assembly
• Inspection stations

Advantages

• Reliable operator protection
• Easy integration with safety relays and Safety PLCs
• Minimal maintenance
• Compact footprint for machines with limited installation space
• Cost-effective safeguarding solution

LS2TP30-450Q88 Safety Light Curtain

The LS2TP30-450Q88 extends the protected area to 450 mm, providing enhanced safeguarding for larger machine openings while maintaining the same 30 mm detection capability and dependable Type 2 performance. It is widely used where operators require greater access protection around automated machinery.

Key Features

• 450 mm protected height
• 30 mm beam resolution
• 15 m sensing range
• Quick response time
• OSSD safety outputs
• 24 V DC supply
• Rugged yellow aluminium housing
• IP65 environmental protection
• High immunity to ambient light
• Integrated M12 connectors

Recommended Applications

• Packaging lines
• Cartoning machines
• Material handling equipment
• Semi-automatic production lines
• Printing machines
• Textile machinery

Benefits

• Improved machine accessibility
• Increased operator safety
• Reduced downtime
• Simple commissioning
• Reliable long-term performance

LS2TP30-600Q88 Safety Light Curtain

The LS2TP30-600Q88 provides a 600 mm protective height, making it suitable for wider machine access points and medium-sized industrial equipment. Its extended sensing area allows greater flexibility without compromising safety or production efficiency.

Key Features

• 600 mm defined protection area
• 30 mm hand detection
• Fast machine stop response
• Robust industrial construction
• Stable infrared beam alignment
• Dual-channel OSSD outputs
• 24 V DC operation
• IP65-rated housing
• Long operating distance
• High reliability in demanding environments

Applications

• Robotic loading stations
• Automated conveyors
• Material transfer systems
• CNC machine access points
• Assembly automation
• Plastic moulding machines

Benefits

• Wider machine coverage
• Better personnel protection
• Reduced accident risk
• Improved production continuity
• Easy maintenance

LS2TE30 – Safety Light Curtain Emitter

The LS2TE30 is the dedicated transmitter (Emitter) unit that generates multiple synchronised infrared beams to create the protective sensing field. Designed for continuous industrial use, it provides stable optical performance and dependable operation in challenging factory environments.

Features

• High-intensity infrared LED technology
• Stable beam transmission
• Compact aluminium housing
• Excellent vibration resistance
• Easy alignment during installation
• Low power consumption
• M12 industrial connector
• Industrial-grade construction

Suitable For

• New machine installations
• Machine retrofits
• Conveyor safety systems
• Press machines
• Packaging equipment
• Robotic cells

LS2TR30 – Safety Light Curtain Receiver

The LS2TR30 is the receiver unit that continuously monitors every infrared beam transmitted by the emitter. When any beam is interrupted, it immediately changes the OSSD outputs to initiate a safe machine stop. Its built-in diagnostics support dependable operation and help detect faults quickly.

Features

• High-speed infrared detection
• Dual OSSD outputs
• Continuous self-monitoring
• LED status indicators
• High noise immunity
• Reliable signal processing
• Easy commissioning
• Durable industrial enclosure

Applications

• Hydraulic presses
• Robotic welding cells
• Automated production lines
• CNC machining centres
• Material handling systems
• Factory automation equipment

Key Features of Safety Light Curtains

Our Safety Light Curtains are engineered to provide dependable personnel protection while supporting uninterrupted production. Every feature is designed to improve machine safety, simplify installation, and enhance long-term reliability.

Fast Response Time

The light curtain detects beam interruptions within milliseconds and immediately sends a stop signal to the connected safety relay or Safety PLC. Fast response reduces the likelihood of operator exposure to hazardous machine movement.

High Detection Accuracy

Advanced infrared sensing technology ensures precise object detection, allowing dependable finger, hand, and arm protection according to the selected resolution.

Long Sensing Distance

With an operating range of up to 15 metres, the system supports both compact machines and large industrial equipment.

Compact Industrial Design

Slim aluminium profiles simplify installation on machinery with limited mounting space while maintaining structural durability.

Durable Aluminium Housing

The corrosion-resistant housing is designed for demanding industrial environments and offers excellent mechanical strength.

High IP Protection

IP65-rated construction protects against dust ingress and water jets, making the units suitable for many manufacturing environments.

Dual OSSD Safety Outputs

Redundant OSSD outputs enable reliable communication with safety relays and Safety PLCs while supporting fault monitoring.

LED Status Indicators

Integrated LEDs provide clear visual information for power, alignment, diagnostics, and operating status, simplifying installation and maintenance.

Excellent EMI Resistance

Advanced filtering minimises false trips caused by electrical noise, welding equipment, motors, or variable frequency drives.

Easy Installation

M12 quick-disconnect connectors, alignment indicators, and compact mounting brackets reduce installation time and maintenance effort.

Long Service Life

Industrial-grade electronic components provide dependable operation over extended periods, reducing replacement costs and unexpected downtime.

Technical Specifications Safety Light Curtains

Parameter	Specification*
Product Type	Safety Light Curtain
Safety Category	Type 2 (selected models)
Detection Resolution	30 mm
Detection Capability	Hand / Arm Protection
Protective Height	300 mm / 450 mm / 600 mm
Operating Distance	0.2 m – 15 m
Supply Voltage	24 V DC
Safety Outputs	Dual OSSD (PNP)
Response Time	Approximately 13–14 ms (model dependent)
Housing Material	Aluminium Alloy
Housing Finish	Yellow Industrial Coating
Protection Rating	IP65
Operating Temperature	0°C to +55°C
Connector Type	8-pin M12 Quick Disconnect
Beam Technology	Infrared Photoelectric
Mounting	Standard Mounting Brackets
Functional Safety	Suitable for applications requiring IEC 61496-compliant Type 2 devices (model dependent)
Certifications	Model dependent (refer to datasheet)

*Specifications may vary slightly by model. Always refer to the selected product datasheet before finalizing machine design or safety validation.

Benefits of Safety Light Curtains

Enhanced Worker Safety

Safety Light Curtains create an invisible protective barrier that helps prevent accidental contact with hazardous machine movements, contributing to a safer workplace.

Reduced Workplace Accidents

By stopping machinery immediately when the sensing field is interrupted, the system helps lower the risk of injuries and associated downtime.

Improved Productivity

Unlike fixed guards, Safety Light Curtains allow operators to load, unload, and inspect machines without repeatedly opening physical barriers, improving workflow efficiency.

Easier Compliance

When correctly selected, installed, and integrated as part of the overall machine safety system, these devices help manufacturers meet applicable functional safety requirements.

Lower Maintenance Costs

With no moving mechanical guarding components, maintenance requirements are reduced, improving equipment availability.

Flexible Machine Integration

Safety Light Curtains can be integrated with Safety PLCs, safety relays, emergency stop circuits, robotic cells, and automated production systems, making them suitable for both new installations and machine retrofits.

Long-Term Cost Savings

Investing in reliable machine safeguarding helps reduce accident-related costs, minimise unplanned production interruptions, and support long-term operational efficiency.

Applications of Safety Light Curtains

Modern manufacturing facilities rely on Safety Light Curtains to create a safe working environment without restricting operator access to machinery. Unlike traditional fixed guards, light curtains allow employees to load materials, inspect products, and perform routine maintenance while ensuring that hazardous machine movements stop immediately whenever the protective field is interrupted.

Genesis Industrial Solutions supplies Type 2 Safety Light Curtains and Type 4 Safety Light Curtains for a wide range of industrial applications, helping businesses improve workplace safety, increase production efficiency, and comply with recognized machine safety standards.

Automotive Manufacturing

The automotive industry operates highly automated production lines where robots, welding stations, conveyors, presses, and assembly equipment work continuously. These machines require dependable safeguarding to protect operators from moving components.

Safety Light Curtains are commonly installed on:

• Robotic welding cells
• Spot welding machines
• Engine assembly lines
• Chassis production systems
• Body panel assembly
• Automated inspection stations
• Material transfer systems

Benefits for Automotive Plants

• Continuous operator protection
• Reduced production interruptions
• Improved manufacturing efficiency
• Faster loading and unloading
• Support for automated production

CNC Machines

CNC machining centres operate at high speeds using rotating tools capable of causing serious injury if operators enter hazardous zones.

Safety Light Curtains help secure:

• CNC Milling Machines
• CNC Turning Centres
• Vertical Machining Centres
• Horizontal Machining Centres
• Automatic Tool Changers
• Loading Stations

Why They Are Used

• Protect operators during loading
• Prevent accidental access
• Maintain machine productivity
• Support automated machining operations

Hydraulic Press Machines

Press machines generate extremely high forces, making operator protection essential.

Type 4 Safety Light Curtains are widely used on:

• Hydraulic Presses
• Mechanical Presses
• Punching Machines
• Stamping Machines
• Forging Equipment
• Press Brake Systems

Benefits

• Prevent hand injuries
• Rapid machine stopping
• Easy access to workpieces
• Improved production efficiency

Packaging Industry

Packaging machinery operates continuously with cutting blades, sealing systems, conveyors, and moving mechanical components.

Typical applications include:

• Cartoning Machines
• Filling Machines
• Shrink Wrapping Machines
• Labelling Equipment
• Palletising Systems
• Conveyor Lines

Advantages

• Faster product handling
• Safe operator access
• Reduced downtime
• Improved packaging efficiency

Food Processing Industry

Food manufacturing plants require hygienic, reliable, and efficient safety systems that support uninterrupted production.

Safety Light Curtains are used in:

• Food Packaging Lines
• Bottle Filling Machines
• Conveyor Systems
• Mixing Equipment
• Processing Machines
• Automated Sorting Systems

Key Benefits

• Improved worker safety
• Reduced production delays
• Easy cleaning access
• Reliable machine protection

Pharmaceutical Manufacturing

Pharmaceutical production requires precise automation while protecting personnel working near automated machinery.

Applications include:

• Tablet Packaging
• Blister Packing
• Filling Machines
• Inspection Systems
• Robotic Handling Equipment
• Cleanroom Automation

Benefits

• Safe production processes
• Reliable machine safeguarding
• Reduced operator exposure
• Improved manufacturing efficiency

Electronics Manufacturing

Electronic component manufacturing relies on high-speed automated assembly equipment.

Safety Light Curtains protect operators working around:

• PCB Assembly Lines
• Pick-and-Place Machines
• Wave Soldering Equipment
• Testing Systems
• Component Handling Robots

Benefits

• High production speed
• Safe equipment operation
• Reduced maintenance interruptions
• Better operator productivity

Plastic Industry

Plastic manufacturing equipment often includes moving moulds, injection units, and robotic part removal systems.

Common applications:

• Injection Moulding Machines
• Blow Moulding Systems
• Extrusion Lines
• Plastic Assembly Equipment

Benefits

• Machine operator protection
• Faster production cycles
• Improved machine accessibility

Metal Processing Industry

Metal fabrication involves hazardous cutting, bending, and forming operations.

Safety Light Curtains are suitable for:

• Laser Cutting Machines
• Sheet Metal Presses
• Rolling Machines
• Metal Forming Equipment
• Automatic Feeding Systems

Advantages

• Increased operator safety
• Continuous production
• Improved machine reliability

Textile Industry

Textile manufacturing uses high-speed automated machinery that requires dependable safeguarding.

Applications include:

• Weaving Machines
• Fabric Cutting Machines
• Printing Equipment
• Rolling Machines
• Inspection Systems

Warehouse Automation

Modern warehouses increasingly depend on automation for handling goods quickly and safely.

Applications include:

• Conveyor Systems
• Automated Storage Systems
• Pallet Handling
• Sorting Machines
• Distribution Centres

Benefits

• Reduced accident risks
• Higher productivity
• Better workflow efficiency

Material Handling Systems

Material handling equipment frequently transports heavy products using automated conveyors and lifting mechanisms.

Safety Light Curtains help protect:

• Conveyor Lines
• Transfer Systems
• Automated Guided Vehicle (AGV) Stations
• Lifting Equipment
• Loading Areas

Assembly Lines

Automated assembly lines require unrestricted operator access while maintaining safe machine operation.

Applications include:

• Electronic Assembly
• Automotive Assembly
• Consumer Goods Manufacturing
• Industrial Equipment Production

Robotics and Cobot Applications

Industrial robots perform repetitive tasks at high speeds and often work alongside operators. Proper safeguarding is essential to minimise risks while maintaining productivity.

Safety Light Curtains are installed around:

• Robotic Welding Cells
• Robotic Palletisers
• Pick-and-Place Robots
• Machine Tending Robots
• Collaborative Robot Workstations (where appropriate following risk assessment)

Benefits

• Protect personnel entering robot work cells
• Reduce production interruptions
• Improve automation efficiency
• Support flexible manufacturing layouts

Industries We Serve for Safety Light Curtains

Genesis Industrial Solutions supplies Safety Light Curtains to customers across India in a wide range of sectors, including:

• Automotive Manufacturing
• Heavy Engineering
• Aerospace
• Pharmaceutical
• Food & Beverage
• FMCG
• Textile
• Packaging
• Electronics
• Plastic Processing
• Metal Fabrication
• Steel Plants
• Logistics & Warehousing
• Material Handling
• Printing Industry
• Chemical Processing
• Rubber Industry
• Industrial Automation
• Machine Building
• OEM Machine Manufacturers
• System Integrators

Our experienced technical team works closely with machine builders, OEMs, automation integrators, and manufacturing companies to recommend the most suitable Safety Light Curtain based on machine design, operating conditions, and applicable safety requirements.

Understanding Safety Standards

Selecting the correct Safety Light Curtain involves more than choosing a sensing height or beam spacing. It also requires compliance with recognised international machine safety standards.

Below are the most important standards used in industrial machine safeguarding.

IEC 61496 – Electro-Sensitive Protective Equipment

IEC 61496 is the primary international standard governing electro-sensitive protective equipment (ESPE), including Safety Light Curtains.

It specifies requirements for:

• Performance testing
• Functional safety
• Reliability
• Fault detection
• Self-monitoring
• Environmental performance
• Response characteristics

Choosing products designed for applications requiring IEC 61496 compliance helps manufacturers implement reliable machine safeguarding as part of an overall safety system.

ISO 13849 – Safety of Machinery

ISO 13849 provides guidance on the design and validation of machine safety-related control systems.

It introduces the concept of Performance Level (PL), which measures the reliability of a safety function.

Performance Levels range from:

• PL a
• PL b
• PL c
• PL d
• PL e

Higher Performance Levels represent greater resistance to dangerous failures and are typically required for higher-risk machinery.

IEC 62061 – Functional Safety

IEC 62061 focuses on the functional safety of machinery using electrical, electronic, and programmable control systems.

It helps engineers determine:

• Safety integrity requirements
• Risk reduction measures
• System architecture
• Safety validation procedures

This standard is commonly used for complex automated production systems.

ISO 12100 – Machine Risk Assessment

ISO 12100 establishes the principles for identifying machine hazards and reducing risks through inherently safe design, safeguarding measures, and user information.

Before selecting a Safety Light Curtain, manufacturers should perform a documented risk assessment to determine:

• Hazard severity
• Frequency of operator exposure
• Possibility of avoiding hazards
• Required safety performance

CE Marking

CE marking indicates that a product has been assessed against applicable European regulatory requirements.

For machinery exported to many international markets, CE compliance is often an important consideration as part of the overall machine conformity process.

SIL (Safety Integrity Level)

Safety Integrity Level (SIL) is used to evaluate the probability that a safety-related system will perform its intended function when required.

Common levels include:

• SIL 1
• SIL 2
• SIL 3

Higher SIL ratings correspond to greater reliability requirements for safety functions.

Performance Level (PL)

Performance Level (PL) evaluates the reliability of machine safety systems based on architecture, diagnostics, and component reliability.

PL ratings include:

• PL a
• PL b
• PL c
• PL d
• PL e

Many high-risk industrial applications require safety systems designed to achieve PL d or PL e when incorporated into a validated machine safety design.

Installation Guidelines of Safety Light Curtains

Correct installation is essential for ensuring that Safety Light Curtains perform as intended. Always follow the manufacturer’s documentation and applicable machine safety standards.

Step 1 – Conduct a Risk Assessment

Evaluate the machine, identify hazards, and determine the required protection height, resolution, and stopping distance.

Step 2 – Select the Correct Model

Choose the appropriate model based on:

• Machine type
• Detection capability
• Protection height
• Required safety level
• Environmental conditions

Step 3 – Determine Safety Distance

Install the Safety Light Curtain at a distance that allows the machine to stop before an operator can reach the hazardous area.

Step 4 – Mount the Transmitter and Receiver

Install the LS2TE30 emitter and LS2TR30 receiver securely using the recommended mounting brackets. Ensure they are aligned accurately.

Step 5 – Connect to the Safety Circuit

Wire the OSSD outputs to a compatible Safety Relay or Safety PLC in accordance with the manufacturer’s instructions.

Step 6 – Verify Alignment

Use the LED status indicators to confirm proper beam alignment and uninterrupted operation.

Step 7 – Functional Testing

Before placing the machine into service:

• Interrupt the sensing field.
• Verify that the machine stops immediately.
• Test all reset and restart functions.
• Record the results as part of the machine commissioning process.

Maintenance Tips Safety Light Curtains

Routine maintenance helps maintain reliable performance and extends product life.

Daily Checks

• Inspect the sensing area for obstructions.
• Confirm normal LED status.
• Check for physical damage.

Weekly Checks

• Clean the emitter and receiver lenses with a soft, lint-free cloth.
• Verify mounting bracket tightness.
• Inspect wiring and connectors.

Monthly Checks

• Test machine stopping performance.
• Verify beam alignment.
• Check safety relay or Safety PLC diagnostics.
• Review any recorded fault messages.

Preventive Maintenance

• Replace damaged cables promptly.
• Keep lenses free from oil, dust, and coolant residue.
• Protect units from accidental impacts.
• Revalidate the safety function after machine modifications or maintenance.

How to Select the Right Safety Light Curtain

Choosing the correct Safety Light Curtain ensures both effective safeguarding and reliable machine operation.

Detection Resolution

Select the appropriate resolution based on the body part requiring protection:

• 14–20 mm: Finger protection
• 20–30 mm: Hand protection
• 40 mm and above: Arm or body detection

Protection Height

The protective height should fully cover the hazardous access area. Genesis Industrial Solutions offers multiple protection heights to suit different machine designs.

Machine Type

Different machines require different safeguarding approaches:

• CNC machines
• Hydraulic presses
• Robotic cells
• Packaging equipment
• Conveyor systems
• Assembly stations

Risk Level

Choose a solution that matches the machine’s risk assessment. Higher-risk machinery may require Type 4 Safety Light Curtains as part of a validated safety system.

Operating Environment

Consider:

• Dust
• Oil mist
• Water exposure
• Vibration
• Ambient temperature
• Electromagnetic interference

Selecting a product with an appropriate IP rating and robust construction helps ensure reliable performance.

Mounting Space

Compact machinery may require slim-profile light curtains that can be installed in confined spaces without affecting machine accessibility.

Integration Requirements

Confirm compatibility with:

• Safety PLCs
• Safety relays
• Machine controllers
• Emergency stop circuits
• Existing automation systems

Future Expansion

If production requirements may change, select a Safety Light Curtain that can accommodate future machine upgrades or process modifications.

Why Choose Genesis Industrial Solutions?

Genesis Industrial Solutions combines technical expertise with practical industrial experience to deliver dependable machine safety solutions across India.

When you partner with us, you benefit from:

• Wide range of Safety Light Curtain models
• Expert product selection assistance
• Technical support from experienced automation professionals
• Competitive pricing
• Reliable product quality
• Pan-India supply network
• Prompt delivery
• Assistance with installation and commissioning
• After-sales support
• Solutions tailored for OEMs, system integrators, and end-user industries

By understanding your machine, application, and safety objectives, we help you implement solutions that support safer operations, improved productivity, and long-term reliability.

Safety Light Curtains Price in India

One of the most common questions buyers ask is, “What is the Safety Light Curtains price in India?” The answer depends on several technical and commercial factors, including the safety category, detection height, sensing range, and application requirements.

At Genesis Industrial Solutions, we provide cost-effective Safety Light Curtains without compromising on quality, reliability, or machine safety. Whether you need a Type 2 Safety Light Curtain for medium-risk applications or a Type 4 Safety Light Curtain for high-risk industrial machinery, our technical team will recommend the most suitable solution based on your operational requirements.

Factors Affecting Safety Light Curtains Price

The final cost of a Safety Light Curtain depends on several factors, including:

• Model selection (LS2TP30-300Q88, LS2TP30-450Q88, LS2TP30-600Q88, LS2TE30, LS2TR30)
• Type 2 or Type 4 safety category
• Detection height
• Beam resolution
• Number of infrared beams
• Sensing distance
• Required protection level
• Environmental protection rating (IP)
• Accessories and mounting brackets
• Cable length and connectors
• Quantity ordered
• Installation requirements
• Integration with Safety PLC or Safety Relay
• Project location
• Customisation requirements

Request a Competitive Quote

Looking for the best Safety Light Curtains supplier in India?

Genesis Industrial Solutions offers:

• Competitive industrial pricing
• Bulk order discounts
• Fast PAN India delivery
• Expert technical consultation
• Genuine industrial safety products
• Reliable after-sales support

Contact our technical team today to request a customised quotation based on your machine safety requirements.

FAQs about Safety Light Curtains

What is a Safety Light Curtain?

A Safety Light Curtain is a photoelectric safety device that creates an invisible infrared protective field around hazardous machinery. If a person or object interrupts the light beams, the system immediately sends a stop signal to the machine.

How does a Safety Light Curtain work?

A transmitter emits infrared beams to a receiver. When any beam is interrupted, the receiver changes the OSSD safety outputs, which signal the machine’s safety control system to stop hazardous motion.

What is the difference between Type 2 and Type 4 Safety Light Curtains?

Type 2 Safety Light Curtains are generally used for medium-risk applications, while Type 4 Safety Light Curtains are intended for higher-risk machinery requiring a higher level of functional safety, subject to the overall machine risk assessment.

Where are Safety Light Curtains used?

They are commonly used in:

• CNC Machines
• Hydraulic Presses
• Robotic Cells
• Packaging Machines
• Assembly Lines
• Conveyor Systems
• Material Handling Equipment
• Food Processing Machines

Why should I use a Safety Light Curtain instead of a physical guard?

Safety Light Curtains provide operator protection while allowing faster machine access, improving productivity without the need to repeatedly open and close mechanical guards.

Can Safety Light Curtains detect fingers?

Yes. Depending on the model and beam resolution, Safety Light Curtains can provide finger, hand, or body protection.

What is beam resolution?

Beam resolution refers to the minimum object size the Safety Light Curtain can reliably detect.

What is OSSD?

OSSD (Output Signal Switching Device) is a dual-channel safety output used to communicate with safety relays and Safety PLCs.

What power supply is required?

Most industrial Safety Light Curtains operate on a 24 V DC power supply.

Are Safety Light Curtains waterproof?

Most industrial models provide IP65 protection, making them suitable for many industrial environments.

Can they be used outdoors?

They can be installed outdoors if environmental conditions, mounting, and enclosure protection are appropriate. Always verify the manufacturer’s recommendations for the specific model.

How often should Safety Light Curtains be tested?

Visual inspections should be carried out regularly, with functional testing performed according to the machine manufacturer’s maintenance schedule and applicable safety procedures.

Are Safety Light Curtains suitable for robotic applications?

Yes. They are widely used around robotic work cells, palletisers, machine tending systems, and automated production lines where appropriate safeguarding has been designed.

What is the maximum sensing distance?

The maximum operating distance varies by model. Always refer to the product datasheet for the selected model.

What industries use Safety Light Curtains?

Industries include:

• Automotive
• Electronics
• Pharmaceutical
• Packaging
• Food Processing
• Textile
• Metal Fabrication
• Warehousing
• Logistics
• Plastic Manufacturing

How do I select the correct Safety Light Curtain?

Selection depends on:

• Machine type
• Risk assessment
• Detection resolution
• Protection height
• Stopping distance
• Installation environment
• Applicable safety standards

What standards apply to Safety Light Curtains?

Common standards include IEC 61496, ISO 13849, IEC 62061, and ISO 12100, depending on the machine and application.

Can Safety Light Curtains be integrated with a Safety PLC?

Yes. Most industrial Safety Light Curtains support integration with compatible Safety PLCs and safety relays through OSSD outputs.

What maintenance is required?

Routine maintenance includes cleaning the lenses, checking alignment, inspecting cables, verifying mounting, and performing regular functional tests.

What is the lifespan of a Safety Light Curtain?

With correct installation and maintenance, industrial Safety Light Curtains typically provide many years of reliable service.

Does Genesis Industrial Solutions provide technical support?

Yes. We provide product selection assistance, technical guidance, installation support, and after-sales service across India.

Can you supply Safety Light Curtains across India?

Yes. Genesis Industrial Solutions supplies Safety Light Curtains to OEMs, machine builders, system integrators, and manufacturing companies throughout India.

Do you provide bulk order pricing?

Yes. Special pricing is available for OEMs, automation integrators, and bulk industrial orders.

Which model is best for my machine?

Our technical experts will recommend the appropriate model after evaluating your machine, application, and safety requirements.

How can I request a quotation?

You can contact Genesis Industrial Solutions by phone, email, or through the enquiry form on our website. Our team will provide a prompt quotation and technical consultation.

Why Choose Genesis Industrial Solutions for Safety Light Curtains?

When you choose Genesis Industrial Solutions, you gain a partner committed to machine safety and industrial automation excellence.

Our Advantages

• Trusted Safety Light Curtains manufacturer and supplier in India
• Extensive range of Type 2 and Type 4 Safety Light Curtains
• Experienced technical support team
• Competitive pricing
• PAN India supply and delivery
• Genuine industrial automation products
• Fast response to enquiries
• Assistance with product selection
• Installation guidance
• After-sales technical support
• Support for OEMs, machine builders, and system integrators

Request a Quote Today

Protect your workforce and improve machine safety with high-quality Safety Light Curtains from Genesis Industrial Solutions.

Whether you require the LS2TP30-300Q88, LS2TP30-450Q88, LS2TP30-600Q88, LS2TE30, or LS2TR30, our specialists can help you select the ideal solution for your application.

Contact Genesis Industrial Solutions today to:

• Request a free quotation
• Discuss your application with technical experts
• Get assistance selecting the right Safety Light Curtain
• Enquire about bulk or OEM pricing
• Receive fast delivery across India

Invest in safer machines, protect your workforce, and improve production efficiency with Genesis Industrial Solutions.
