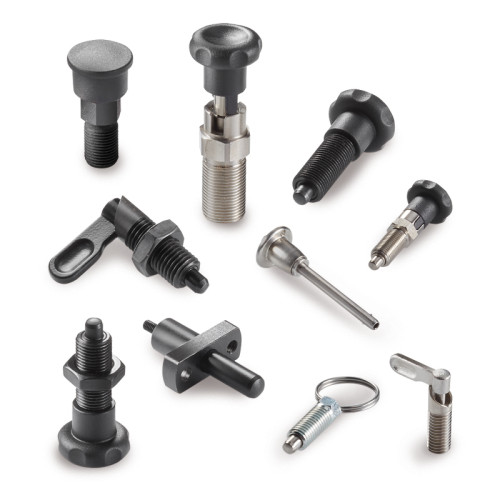

Indexing Plungers

Description

Indexing Plungers Manufacturers and Suppliers in India

Modern industrial machinery depends on precise positioning, repeatable movement, and reliable locking mechanisms to maintain production accuracy and operational efficiency.

Indexing Plungers are one of the most widely used mechanical positioning components that help engineers achieve repeatable positioning in machines, fixtures, tooling systems, and automation equipment. Although compact in size, these components play a critical role in ensuring that movable machine parts return to the exact position every time without requiring complex control systems.

In manufacturing industries, even a small positional error can lead to defective products, increased machine downtime, reduced productivity, and unnecessary maintenance costs. Indexing plungers eliminate these challenges by providing a dependable manual positioning solution that combines precision, simplicity, and durability. Their spring-loaded mechanism allows the locking pin to engage automatically into matching holes, securely holding machine components in place until repositioning is required.

Industrial automation systems increasingly rely on indexing plungers because they simplify machine setup, enable faster changeovers, and reduce operator effort. Whether adjusting guide rails on packaging machines, positioning workpieces on CNC fixtures, aligning conveyor stops, or securing inspection equipment, indexing plungers deliver consistent and repeatable performance.

Available in various body materials, pin designs, handle configurations, and locking mechanisms, indexing plungers can be selected according to the application’s load requirements, environmental conditions, and operating frequency. Models manufactured from hardened steel provide exceptional wear resistance for heavy-duty applications, while stainless steel variants offer superior corrosion resistance for food processing, pharmaceutical, and outdoor installations.

At Genesis Technomation India Private Limited, we supply high-quality indexing plungers engineered for demanding industrial applications. Our product range includes trusted models such as GN 617, GN 717, GN 615, GN 615.1, and GN 615.4, helping OEM manufacturers, machine builders, automation integrators, and maintenance teams achieve reliable positioning solutions across a wide range of industries.

Whether you require standard components for machine construction or specialized positioning solutions for automated production lines, our engineering team can assist in selecting the right indexing plunger for your application.

What are Indexing Plungers?

An indexing plunger is a spring-actuated mechanical positioning device designed to accurately locate, lock, or secure moving machine elements. It consists of a threaded body, a precision-machined locking pin, an internal compression spring, and an operating knob or pull ring. When the operator releases the knob, the spring automatically pushes the locking pin into a mating hole, securing the component in a predetermined position.

Unlike conventional fastening methods that require tools for adjustment, indexing plungers allow quick manual repositioning without dismantling machine components. This makes them particularly valuable in production environments where frequent adjustments and rapid changeovers are essential.

The primary purpose of an indexing plunger is to provide:

• Accurate positioning of moving machine parts
• Positive mechanical locking
• Repeatable alignment
• Quick manual adjustment
• Safe machine operation
• Reduced setup time
• Improved production consistency

These components are commonly integrated into:

• Adjustable machine tables
• Guide rail systems
• Conveyor stops
• Linear slides
• Rotary indexing devices
• Tool holders
• Safety guards
• Fixture plates
• Workholding systems
• Adjustable brackets

Because the locking action is mechanical rather than hydraulic or pneumatic, indexing plungers offer exceptional reliability with minimal maintenance requirements. They continue to function effectively even in environments exposed to dust, vibration, oil, or continuous mechanical movement.

Main Components of an Indexing Plunger

Understanding the construction of an indexing plunger helps engineers choose the most suitable model for their machinery.

Threaded Body

The threaded body serves as the mounting element and houses the internal spring mechanism. Precision-machined threads ensure secure installation and accurate alignment within the machine frame. Depending on the application, the body may be manufactured from hardened steel, stainless steel, or zinc-plated steel to provide the required strength and corrosion resistance.

Locking Pin

The locking pin is the functional element responsible for engaging with the mating hole. It is typically manufactured from hardened steel to withstand repeated engagement cycles, resist wear, and maintain dimensional accuracy. Stainless steel pins are preferred where corrosion resistance is critical.

Compression Spring

A high-quality compression spring generates the force necessary to extend the locking pin automatically. The spring is designed to deliver consistent performance over thousands of operating cycles, ensuring dependable engagement without frequent replacement.

Operating Knob or Pull Handle

The knob allows the user to retract the locking pin manually. Ergonomically designed knobs improve operator comfort, reduce fatigue, and enable quick adjustments even in confined machine spaces.

Locking Mechanism

Certain indexing plungers include a lock-out feature that keeps the pin retracted until manually released. This design is particularly beneficial when multiple positioning adjustments are required before re-engaging the pin.

How Indexing Plungers Work

The operation of an indexing plunger is based on a simple yet highly effective spring-loaded mechanism that provides repeatable positioning without the need for external power sources.

Step 1: Initial Locked Position

In the normal operating condition, the compression spring pushes the locking pin outward. The pin engages with a corresponding hole in the mating component, securing it firmly in position.

Step 2: Manual Retraction

When repositioning is required, the operator pulls the knob or handle. This action compresses the internal spring and retracts the locking pin from the locating hole.

Step 3: Free Movement

With the pin fully retracted, the machine component can move freely. Examples include adjusting guide rails, repositioning fixtures, changing machine stops, or rotating indexing plates.

Step 4: Aligning the New Position

The operator moves the component until the next locating hole aligns with the indexing plunger.

Step 5: Automatic Engagement

Upon releasing the knob, the compression spring immediately pushes the locking pin forward. The pin enters the locating hole, locking the component securely into its new position.

Step 6: Repeatable Positioning

Because the locating holes are precision-machined, each engagement returns the component to the same location with excellent repeatability, helping maintain consistent machine accuracy and product quality.

This straightforward operating principle minimizes adjustment time, enhances operator efficiency, and reduces the risk of positioning errors in production environments.

Engineering Design of Indexing Plungers

The engineering design of indexing plungers is focused on delivering long service life, reliable positioning, and consistent performance under demanding industrial conditions.

Precision-Machined Body

The threaded body is manufactured using high-precision machining processes to ensure dimensional accuracy, secure mounting, and proper alignment with mating components. Accurate threads also simplify installation and reduce the possibility of loosening during operation.

Hardened Locking Pin

The locking pin is subjected to heat treatment to increase surface hardness and wear resistance. This ensures reliable engagement even after thousands of positioning cycles, making it suitable for high-use industrial applications.

High-Performance Compression Spring

The internal spring is engineered to provide consistent force throughout its operational life. Proper spring selection is essential to maintain reliable pin engagement while allowing smooth manual operation.

Optimized Thread Geometry

The thread profile is designed to distribute installation loads evenly, improving fastening reliability and reducing the likelihood of thread damage during repeated adjustments.

Corrosion Protection

Depending on the operating environment, indexing plungers are available with zinc-plated, black oxide, or stainless steel finishes. These treatments help protect against moisture, chemicals, and other corrosive elements commonly encountered in industrial facilities.

Compact Construction

A compact design enables installation in machines where space is limited, without compromising strength or functionality.

High Manufacturing Accuracy

Modern machining techniques ensure close dimensional tolerances, contributing to consistent positioning accuracy and interchangeability across production batches.

Technical Features of Indexing Plungers

Spring-Loaded Automatic Engagement

The integrated compression spring ensures that the locking pin automatically engages when the operating knob is released. This automatic action reduces operator dependency, improves safety, and ensures consistent positioning.

Hardened Steel Locking Pin

A hardened pin offers superior resistance to abrasion, repeated impact, and mechanical wear. This extends the component’s service life, particularly in applications involving frequent adjustments or heavy-duty use.

Stainless Steel Construction

For industries where corrosion resistance and hygiene are essential, stainless steel indexing plungers provide excellent durability. They are especially suitable for food processing, pharmaceutical manufacturing, chemical plants, and outdoor equipment.

Precision Machining

Precision machining ensures smooth movement of the locking pin, accurate thread dimensions, and reliable engagement. This reduces friction, minimizes wear, and improves operational consistency.

High Wear Resistance

The combination of hardened materials and precision manufacturing allows indexing plungers to withstand continuous operation in demanding industrial environments without significant performance degradation.

Corrosion Resistance

Protective surface finishes help prevent rust and corrosion, ensuring dependable performance even in humid, wet, or chemically aggressive environments.

Easy Installation

The threaded body allows quick installation into tapped holes using standard engineering practices, reducing assembly time and simplifying maintenance or replacement.

Manual Locking and Positioning

The ergonomic operating knob enables quick manual adjustments, allowing operators to reposition machine components efficiently while maintaining precise alignment.

Long Operational Life

Engineered for durability, indexing plungers are capable of delivering reliable performance over extensive operating cycles, reducing maintenance costs and supporting uninterrupted industrial operations.

Indexing Plunger Product Models – GN 617, GN 717, GN 615, GN 615.1 & GN 615.4

Selecting the right indexing plunger is essential for ensuring long-term machine reliability, repeatable positioning accuracy, and efficient operator interaction. While all indexing plungers perform the same primary function of positioning and locking machine components, each model is engineered to meet different installation requirements, operating environments, and machine design constraints.

At Genesis Technomation India Private Limited, we offer a comprehensive range of industrial indexing plungers suitable for OEM machine manufacturers, automation system integrators, fixture designers, machine tool builders, and maintenance professionals. Our portfolio includes trusted models such as GN 617, GN 717, GN 615, GN 615.1, and GN 615.4, each designed to deliver dependable performance in demanding industrial applications.

GN 617 Indexing Plunger

The GN 617 Indexing Plunger is a spring-loaded positioning component designed for applications requiring quick, repeatable manual positioning with automatic pin engagement. Its robust threaded body and precision-machined locking pin provide reliable positioning in industrial machines where frequent adjustments are required.

This model is widely used in adjustable machine assemblies, guide rails, fixtures, tooling systems, and production equipment where consistent positioning is critical for maintaining product quality and operational efficiency.

Engineering Design

The GN 617 features a durable threaded housing that securely mounts into tapped holes while maintaining precise alignment. The hardened indexing pin moves smoothly within the body, minimizing friction and ensuring accurate engagement over repeated operating cycles.

The compression spring is engineered to provide consistent extension force, enabling automatic engagement whenever the operator releases the pull knob.

The ergonomic operating knob offers comfortable manual operation, allowing quick retraction of the pin even in confined installation spaces.

Working Principle

The operation of GN 617 is straightforward:

1. The spring keeps the indexing pin extended.
2. The pin engages with a corresponding locating hole.
3. Pulling the knob retracts the pin.
4. The machine component becomes movable.
5. Once aligned with the next locating hole, releasing the knob automatically re-engages the pin.

This simple mechanism ensures accurate positioning without requiring additional tools.

Material Construction

Depending on the selected variant, GN 617 may include:

• Steel threaded body
• Stainless steel body
• Hardened steel indexing pin
• Stainless steel pin
• High-performance compression spring
• Ergonomic plastic operating knob

Material selection depends on environmental exposure, mechanical loading, and corrosion resistance requirements.

Mechanical Advantages

GN 617 offers several engineering advantages:

• Excellent positioning repeatability
• Smooth pin movement
• Long operating life
• Reduced setup time
• High wear resistance
• Reliable locking performance
• Easy replacement
• Compact installation

Industrial Applications

GN 617 is commonly installed in:

• Packaging machinery
• Conveyor guide adjustment systems
• Textile machinery
• CNC machine fixtures
• Assembly workstations
• Rotary indexing tables
• Welding fixtures
• Production tooling
• Industrial inspection systems
• Machine guarding

Suitable Machine Types

• Filling machines
• Labeling machines
• Pharmaceutical equipment
• Printing machines
• Robotic workstations
• Material handling systems
• Automated production lines
• Machine tools
• Jig and fixture assemblies
• Test equipment

Advantages over Standard Plungers

Compared with conventional locating pins or manually inserted locking pins, GN 617 provides:

• Automatic spring engagement
• Faster positioning
• Higher operator productivity
• Better repeatability
• Reduced positioning errors
• Improved machine safety
• Lower maintenance requirements

Recommended Installation

For best performance:

• Install perpendicular to the locating surface.
• Ensure proper alignment with receiving holes.
• Avoid excessive side loading.
• Tighten according to the recommended thread size.
• Verify smooth pin movement after installation.

Maintenance Recommendations

Routine maintenance includes:

• Cleaning accumulated dust.
• Removing metal chips.
• Applying suitable lubrication where required.
• Inspecting spring operation.
• Checking pin wear during scheduled maintenance.

GN 717 Indexing Plunger

The GN 717 Indexing Plunger is designed for applications requiring manual pin retraction with enhanced operational flexibility. It is particularly suitable where repeated positioning adjustments occur during production setup or machine changeovers.

The design supports reliable locking while reducing operator effort in machines requiring frequent indexing.

Engineering Design

GN 717 incorporates:

• Precision-machined body
• Wear-resistant locking pin
• Heavy-duty compression spring
• Ergonomic pull mechanism
• High dimensional accuracy

Its compact construction allows installation in equipment where mounting space is limited.

Working Principle

During normal operation:

• The locking pin remains engaged.
• Pulling the operating knob compresses the spring.
• The component is repositioned.
• Releasing the knob immediately locks the assembly into its new position.

The repeatable engagement mechanism minimizes positioning errors.

Material Construction

Typical construction includes:

• Steel body
• Stainless steel body variants
• Hardened steel pin
• Stainless pin options
• Corrosion-resistant finishes
• Durable engineering polymer knob

Mechanical Advantages

GN 717 provides:

• Reliable engagement
• Smooth manual operation
• Excellent durability
• Low friction movement
• Improved positioning accuracy
• Extended service life
• Reduced operator fatigue

Industrial Applications

Typical installations include:

• Adjustable machine guards
• Production fixtures
• Conveyor positioning systems
• Pharmaceutical machinery
• Inspection equipment
• Robotics
• Packaging systems
• Textile production equipment
• Linear positioning systems

Suitable Machine Types

• Automatic assembly machines
• CNC machining centers
• Industrial robots
• Pick-and-place systems
• Filling equipment
• Printing presses
• Material transfer systems

Advantages over Standard Positioning Pins

GN 717 offers:

• Automatic locking
• Higher reliability
• Reduced adjustment time
• Better repeatability
• Improved machine uptime
• Longer operating life

Installation Recommendations

Engineers should ensure:

• Accurate hole alignment
• Proper thread engagement
• Clean mounting surfaces
• Free movement of the indexing pin
• Regular inspection after commissioning

Maintenance

Recommended practices include:

• Monthly inspection
• Cleaning contaminants
• Lubricating moving parts when applicable
• Checking spring tension
• Inspecting pin wear

GN 615 Indexing Plunger

The GN 615 Indexing Plunger is one of the most widely used mechanical positioning components for industrial machinery. Its versatile design makes it suitable for applications requiring dependable locking with quick manual release.

The model is particularly popular among OEM machine manufacturers because of its simplicity, reliability, and ease of installation.

Engineering Design

GN 615 incorporates:

• Precision threaded body
• Hardened locating pin
• Heavy-duty spring
• Ergonomic operating knob
• High-quality machining

The design minimizes wear while providing consistent positioning accuracy.

Working Principle

The spring continuously pushes the pin outward.

When the operator pulls the knob:

• Pin retracts.
• Component moves freely.
• Knob release allows automatic engagement.
• Machine returns to an accurately indexed position.

Material Construction

Available material options may include:

• Steel
• Stainless steel
• Zinc-plated steel
• Hardened alloy steel pin
• Stainless pin
• Corrosion-resistant finishes

Mechanical Advantages

GN 615 delivers:

• High repeatability
• Long service life
• Reduced maintenance
• Compact dimensions
• Excellent wear resistance
• Reliable locking

Industrial Applications

Widely used in:

• Machine fixtures
• Tool positioning
• Conveyor adjustments
• Automation systems
• Packaging machinery
• Assembly lines
• Inspection fixtures
• Manufacturing cells

Suitable Machine Types

• CNC equipment
• Production machines
• Material handling systems
• Robotics
• Machine tools
• Welding automation
• Pharmaceutical equipment

Advantages over Conventional Locking Devices

Compared to bolts and manual locking pins, GN 615 provides:

• Faster machine setup
• Tool-free adjustment
• Better productivity
• Higher positioning precision
• Reduced downtime

Installation Guidelines

For reliable operation:

• Use accurately machined mounting holes.
• Maintain correct alignment.
• Prevent excessive lateral loading.
• Verify full pin engagement.



Maintenance

Regular maintenance includes:

• Cleaning
• Lubrication when necessary
• Visual inspection
• Pin replacement if worn
• Spring inspection

GN 615.1 Indexing Plunger

The GN 615.1 Indexing Plunger is engineered for applications requiring controlled manual positioning with enhanced operator convenience. It is commonly selected where repetitive machine adjustments are performed throughout production shifts.

Engineering Design

Its construction emphasizes:

• Reliable engagement
• Smooth retraction
• High wear resistance
• Precision-machined internal components
• Compact mounting profile

Working Principle

The operator retracts the locking pin manually, repositions the machine element, and releases the knob to achieve automatic re-engagement.

The design supports fast production changeovers while maintaining repeatable positioning.

Material Construction

Depending on the selected version:

• Steel housing
• Stainless steel housing
• Hardened steel pin
• Stainless pin
• Corrosion-resistant spring
• Durable operating knob

Mechanical Advantages

GN 615.1 provides:

• Fast operation
• Excellent repeatability
• Reduced machine downtime
• Long fatigue life
• Reliable positioning
• Minimal maintenance

Applications

Suitable for:

• Automated packaging lines
• Printing machinery
• Textile machines
• Production fixtures
• Material handling equipment
• Machine guarding
• Conveyor positioning

Suitable Machine Types

• Rotary indexing equipment
• Automation cells
• Filling machines
• Food processing equipment
• Industrial assembly systems
• Inspection stations

Advantages

Compared with standard plungers:

• Easier operation
• Better ergonomics
• Faster indexing
• Reliable locking
• Higher productivity

Installation

Recommended installation practices:

• Maintain proper alignment.
• Ensure sufficient engagement depth.
• Inspect after installation.
• Confirm smooth pin travel.

Maintenance

Routine maintenance consists of:

• Cleaning
• Functional testing
• Lubrication where required
• Spring inspection
• Wear monitoring

GN 615.4 Indexing Plunger

The GN 615.4 Indexing Plunger is designed for industrial environments demanding reliable positioning, long operating life, and dependable locking performance. It is suitable for both new machine designs and retrofit projects.

Engineering Design

Its design focuses on:

• Robust construction
• Precision manufacturing
• Wear-resistant components
• Consistent spring force
• Reliable engagement over repeated cycles

Working Principle

The spring extends the pin into the locating hole.

The operator manually retracts the pin for adjustment.

Upon release, the pin automatically locks into the next indexed position.

This mechanism supports efficient machine setup while maintaining high positional accuracy.

Material Construction

Construction options include:

• Steel body
• Stainless steel body
• Hardened locking pin
• Stainless steel pin
• Heavy-duty compression spring
• High-strength operating knob

Mechanical Advantages

Key benefits include:

• High durability
• Smooth operation
• Reliable locking
• Corrosion resistance
• Long operating life
• Reduced maintenance costs

Industrial Applications

Frequently used in:

• CNC fixtures
• Automation equipment
• Material transfer systems
• Packaging machinery
• Welding stations
• Robotics
• Machine safety guards
• Industrial tooling

Suitable Machine Types

• Special purpose machines
• Assembly automation
• Conveyor systems
• Inspection equipment
• Pharmaceutical production
• Industrial processing machines

Advantages

GN 615.4 provides:

• Excellent positioning consistency
• Reduced setup times
• Improved production efficiency
• High mechanical reliability
• Easy installation
• Minimal downtime

Recommended Installation

Engineers should:

• Verify mounting alignment.
• Ensure full thread engagement.
• Check smooth pin movement.
• Avoid excessive side loads.
• Inspect positioning accuracy after installation.

Maintenance Recommendations

Preventive maintenance should include:

• Routine cleaning
• Functional testing
• Wear inspection
• Lubrication where appropriate
• Replacement of damaged components

Technical Specifications of Indexing Plungers

Note: Exact dimensional and performance values vary by model and configuration. Contact Genesis Technomation India Private Limited for detailed datasheets and model-specific specifications.

Parameter	Specification
Product Type	Indexing Plungers
Available Models	GN 617, GN 717, GN 615, GN 615.1, GN 615.4
Body Material	Steel or Stainless Steel (model dependent)
Pin Material	Hardened Steel or Stainless Steel
Spring Type	Compression Spring
Locking Mechanism	Spring Loaded
Mounting Style	Threaded
Operation	Manual Pull
Surface Finish	Model dependent
Corrosion Resistance	Available in corrosion-resistant variants
Available Thread Sizes	Available in multiple sizes
Pin Diameter	Available in multiple sizes
Stroke Length	Available in multiple sizes
Installation	Threaded mounting
Operating Environment	Industrial indoor and outdoor applications
Maintenance	Low maintenance with periodic inspection



Model Comparison Table

Feature	GN 617	GN 717	GN 615	GN 615.1	GN 615.4
Operating Principle	Spring Loaded	Spring Loaded	Spring Loaded	Spring Loaded	Spring Loaded
Locking Method	Automatic Engagement	Automatic Engagement	Automatic Engagement	Automatic Engagement	Automatic Engagement
Body Construction	Threaded	Threaded	Threaded	Threaded	Threaded
Material Options	Steel / Stainless Steel	Steel / Stainless Steel	Steel / Stainless Steel	Steel / Stainless Steel	Steel / Stainless Steel
Corrosion Resistant Variants	Yes	Yes	Yes	Yes	Yes
Suitable for Frequent Adjustment	Excellent	Excellent	Excellent	Excellent	Excellent
Wear Resistance	High	High	High	High	High
Machine Positioning Accuracy	Excellent	Excellent	Excellent	Excellent	Excellent
Industrial Applications	General Automation	Machine Adjustment	OEM Equipment	Production Systems	Heavy Industrial Use
Best Use Case	Adjustable Fixtures	Frequent Positioning	General Machine Design	Automation Equipment	Demanding Industrial Applications

Engineering Selection Guide

Selecting the correct indexing plunger requires evaluating the application’s mechanical and environmental requirements. Consider the following factors:

Load Requirements

Choose a model capable of withstanding the expected operational forces without compromising positioning accuracy.

Thread Size

Ensure the threaded body matches the machine’s mounting hole dimensions for secure installation.

Pin Diameter and Stroke

Select a pin size and stroke length that provide adequate engagement while allowing smooth operation.

Operating Environment

Use stainless steel variants in corrosive, wet, or hygienic environments, and steel variants for standard industrial conditions.

Frequency of Operation

Applications with frequent manual adjustments benefit from models designed for high-cycle operation and ergonomic handling.

Machine Design

Evaluate available mounting space, accessibility, and component alignment to ensure proper integration into the machine.

Maintenance Requirements

Choose designs that support easy inspection, cleaning, and replacement to minimize downtime and extend service life.

Advantages of Indexing Plungers

Industrial machinery is expected to deliver consistent performance, high productivity, and minimal downtime. Even a small positioning error can affect product quality, increase setup time, or cause premature wear of machine components. Indexing plungers address these challenges by providing a simple, reliable, and repeatable positioning solution that is easy to operate and maintain.

Unlike conventional locking methods that often require tools or time-consuming adjustments, indexing plungers enable operators to reposition machine elements quickly while maintaining precise alignment. Their robust construction and spring-loaded mechanism make them suitable for continuous use in demanding industrial environments.

Improved Positioning Accuracy

Accurate positioning is essential in machine tools, assembly equipment, packaging systems, and automated production lines. Indexing plungers ensure that movable components return to the same predefined position every time the locking pin engages.

This repeatability helps:

• Maintain dimensional accuracy
• Reduce production errors
• Improve product consistency
• Minimize rework and scrap

For manufacturers operating high-volume production lines, consistent positioning directly contributes to improved quality control.

Excellent Repeatability

Repeatability is one of the primary reasons engineers specify indexing plungers instead of conventional bolts or locking pins.

Because the locking pin always engages with the same locating hole, operators can reposition machine components confidently without additional measuring or alignment procedures.

This is especially valuable for:

• Fixture positioning
• Changeover operations
• Machine setup
• Tool replacement
• Adjustable guides

Faster Machine Changeovers

Modern manufacturing emphasizes reduced setup time and increased production flexibility.

Indexing plungers simplify machine adjustments by allowing operators to:

• Retract the pin
• Move the component
• Release the pin
• Resume production

The entire process takes only a few seconds, reducing downtime during product changeovers.

Reduced Machine Downtime

Production downtime is costly.

Reliable indexing plungers help reduce downtime by:

• Eliminating complicated adjustments
• Preventing positioning errors
• Reducing operator intervention
• Simplifying maintenance

A properly selected indexing plunger can continue operating reliably for thousands of positioning cycles with minimal maintenance.

Enhanced Operator Safety

Manual positioning operations can expose operators to unnecessary risks if machine components are unstable or difficult to secure.

Indexing plungers improve safety by:

• Providing positive mechanical locking
• Preventing accidental movement
• Reducing the need for improvised locking methods
• Allowing controlled manual adjustment

Many machine builders incorporate indexing plungers into safety guards and adjustable protective covers for this reason.

Long Service Life

Industrial environments expose components to:

• Continuous vibration
• Dust
• Oil
• Coolant
• Frequent operation
• Mechanical wear

High-quality indexing plungers manufactured using hardened steel or stainless steel maintain reliable performance even under these demanding conditions.

Their wear-resistant construction reduces replacement frequency and lowers overall maintenance costs.

Low Maintenance Requirements

Unlike hydraulic or pneumatic positioning systems, indexing plungers require very little maintenance.

Routine maintenance generally consists of:

• Cleaning
• Visual inspection
• Occasional lubrication where appropriate
• Spring inspection
• Checking pin movement

This simplicity makes them a preferred choice for industrial automation equipment.

Compact Yet Highly Effective

Despite their compact size, indexing plungers perform an essential function within machinery.

Their small footprint allows installation in areas where larger locking mechanisms cannot be accommodated while still delivering dependable positioning performance.

Industrial Applications of Indexing Plungers

Indexing plungers are widely used wherever machine components require accurate manual positioning, secure locking, or repeatable adjustment. Their versatility makes them suitable for virtually every manufacturing sector.

Packaging Machines

Packaging machinery requires rapid format changes to accommodate different product sizes.

Indexing plungers help operators quickly adjust:

• Guide rails
• Product supports
• Conveyor widths
• Filling heads
• Sensor brackets
• Change parts

Automatic engagement minimizes adjustment time while maintaining consistent positioning.

CNC Machines

Precision machining demands exact workpiece positioning.

Indexing plungers are commonly used on:

• Fixture plates
• Rotary tables
• Tool holders
• Adjustable stops
• Workholding fixtures

Their repeatable positioning improves machining accuracy while reducing setup time.

Printing Machines

Printing equipment contains numerous adjustable components that require precise alignment.

Typical applications include:

• Registration systems
• Paper guides
• Ink stations
• Roller adjustments
• Format changes

Reliable positioning helps maintain print quality throughout production.

Textile Machinery

Textile production equipment operates continuously at high speeds.

Indexing plungers provide dependable positioning for:

• Yarn guides
• Fabric alignment systems
• Cutting equipment
• Adjustable rollers
• Machine covers

Their compact design fits easily into space-constrained textile machinery.

Pharmaceutical Equipment

Pharmaceutical manufacturing requires repeatable machine settings together with hygienic component design.

Stainless steel indexing plungers are commonly installed on:

• Filling machines
• Tablet presses
• Packaging equipment
• Inspection systems
• Conveyor guides

Corrosion-resistant materials support compliance with stringent cleanliness requirements.

Conveyor Systems

Conveyor systems often require rapid adjustment for different package dimensions.

Indexing plungers simplify:

• Guide rail positioning
• Stop adjustment
• Sensor mounting
• Transfer mechanisms
• Conveyor width changes

This improves production flexibility while reducing operator effort.

Welding Fixtures

Accurate fixture positioning directly affects weld quality.

Indexing plungers secure:

• Fixture arms
• Clamping devices
• Adjustable locating pins
• Positioning blocks
• Rotary welding fixtures

Repeatable positioning ensures consistent weld geometry.

Assembly Lines

Assembly stations require flexible tooling to accommodate multiple product variants.

Indexing plungers assist with:

• Fixture positioning
• Tool mounting
• Adjustable supports
• Operator workstations
• Product changeovers

This enables lean manufacturing practices and quicker production transitions.

Industrial Automation Equipment

Automation systems frequently incorporate manually adjustable components.

Applications include:

• Linear positioning
• Robot fixtures
• End-of-arm tooling
• Sensor brackets
• Camera mounting
• Safety barriers

Reliable indexing ensures accurate component alignment.

Robotics

Industrial robots require precise mechanical positioning during maintenance, tooling replacement, and production changeovers.

Indexing plungers are used for:

• End effector positioning
• Robot guarding
• Tool changers
• Calibration fixtures
• Robot bases

Accurate positioning reduces calibration time and improves repeatability.

Material Handling Systems

Material handling equipment benefits from adjustable positioning mechanisms that improve operational flexibility.

Typical applications include:

• Pallet stops
• Adjustable guides
• Loading stations
• Lift tables
• Transfer systems

Reliable positioning minimizes handling errors.

Inspection Machines

Inspection equipment depends on accurate positioning for consistent measurement results.

Indexing plungers are used on:

• Camera mounts
• Optical systems
• Gauge fixtures
• Test stations
• Quality inspection equipment

Repeatability enhances inspection accuracy.

Jigs & Fixtures

Jigs and fixtures rely on repeatable positioning to maintain manufacturing accuracy.

Indexing plungers assist with:

• Workpiece location
• Fixture adjustment
• Component alignment
• Tool positioning
• Modular fixtures

Their quick operation reduces production setup time.

Tool Changers

Machine tools and automation equipment often require rapid tool replacement.

Indexing plungers provide secure positioning within:

• Tool magazines
• Tool racks
• Automatic tool changers
• Maintenance fixtures

This contributes to efficient production operations.

Machine Guards

Safety guarding must be easy to open for maintenance while remaining securely locked during operation.

Indexing plungers provide dependable locking for:

• Protective doors
• Inspection covers
• Safety enclosures
• Access panels

Their manual operation simplifies maintenance while supporting workplace safety.

Industries We Serve

Genesis Technomation India Private Limited supplies indexing plungers to a broad spectrum of industrial sectors where reliable positioning and durable mechanical components are essential.

Automotive Industry

Used in welding fixtures, assembly stations, inspection gauges, robotic systems, and production tooling where precision positioning directly impacts manufacturing quality.

Food Processing Industry

Stainless steel indexing plungers are suitable for conveyors, packaging equipment, processing machinery, and adjustable guide systems operating in hygienic environments.

Pharmaceutical Industry

Applied in filling lines, blister packaging equipment, tablet presses, cleanroom machinery, and inspection systems requiring corrosion-resistant mechanical components.

Chemical Industry

Corrosion-resistant variants perform reliably in environments exposed to moisture, cleaning agents, and industrial chemicals.

Textile Industry

Supports machine adjustment, fabric guiding, roller positioning, and production changeovers in high-speed textile machinery.

Packaging Industry

Enables rapid machine adjustments, format changes, and guide rail positioning while minimizing production downtime.

Plastic Processing Industry

Commonly installed in injection molding machines, assembly fixtures, and material handling equipment for accurate positioning.

Electronics Manufacturing

Provides repeatable positioning for precision assembly stations, inspection fixtures, testing equipment, and automation systems.

Aerospace Industry

Used in manufacturing fixtures, tooling systems, inspection equipment, and maintenance applications requiring consistent positioning accuracy.

Renewable Energy Industry

Applied in production equipment used for solar panels, wind turbine components, battery manufacturing, and energy storage systems.

Heavy Engineering

Supports positioning of large fixtures, fabrication equipment, welding stations, and industrial machinery operating under demanding conditions.

How to Choose the Right Indexing Plunger

Selecting the correct indexing plunger improves machine reliability, enhances operator convenience, and extends service life. Engineers should evaluate several important factors before making a selection.

1. Load Requirements

Choose a model capable of withstanding the operational forces generated during normal machine use. Applications involving heavy fixtures or large moving assemblies may require more robust indexing plungers with hardened locking pins.

2. Thread Size

The threaded body should match the mounting hole dimensions specified in the machine design. Proper thread engagement ensures secure installation and reduces the risk of loosening under vibration.

3. Pin Diameter

The locking pin diameter should correspond with the locating hole to provide secure engagement while allowing smooth operation. Excessive clearance can reduce positioning accuracy, whereas insufficient clearance may lead to binding.

4. Stroke Length

The required stroke depends on the thickness of the components being positioned and the depth of the locating hole. Selecting an appropriate stroke ensures reliable engagement without unnecessary travel.

5. Material Selection

Material choice depends on the operating environment:

• Hardened steel for heavy-duty industrial use
• Stainless steel for corrosive or hygienic environments
• Corrosion-resistant finishes for humid or outdoor installations

6. Operating Environment

Consider exposure to:

• Dust
• Moisture
• Coolants
• Chemicals
• High temperatures
• Outdoor weather conditions

Environmental conditions directly influence material selection and expected service life.

7. Frequency of Operation

Machines requiring frequent manual adjustments benefit from indexing plungers designed for high-cycle operation and ergonomic handling.

8. Installation Space

Evaluate available mounting space to ensure sufficient clearance for operating the pull knob and accessing the component during maintenance.

9. Machine Design

The plunger should integrate seamlessly with the overall machine layout, ensuring correct alignment with the mating hole and avoiding side loading that can accelerate wear.

10. Maintenance Strategy

Select models that allow straightforward inspection, cleaning, and replacement. Easy maintenance helps minimize downtime and supports long-term reliability.

Indexing Plungers Price

The Indexing Plungers price varies depending on the application, material, size, and configuration. Since industrial machines have different design requirements, there is no universal price for every model.

The final cost is typically influenced by:

• Model selection (GN 617, GN 717, GN 615, GN 615.1, GN 615.4)
• Body material (steel or stainless steel)
• Locking pin material
• Thread size
• Pin diameter
• Stroke length
• Surface finish
• Quantity ordered
• OEM or custom specifications
• Standard or corrosion-resistant variants

For the most accurate quotation, share your technical requirements, application details, required quantity, and preferred model with the engineering team at Genesis Technomation India Private Limited. We provide competitive pricing for single units, bulk purchases, OEM requirements, and long-term industrial supply contracts.

Why Buy Indexing Plungers from Genesis Technomation India Private Limited?

Choosing the right supplier is as important as selecting the right product. At Genesis Technomation India Private Limited, we combine industrial automation expertise with dependable product quality to support OEMs, machine builders, and manufacturing industries across India.

Industrial Automation Expertise

Our team understands the practical challenges faced by machine designers, production engineers, and maintenance professionals. We help customers select the most suitable indexing plunger for their specific application.

Genuine Quality Products

We supply high-quality industrial components designed for dependable positioning, long service life, and consistent performance in demanding environments.

Technical Engineering Support

From model selection to installation guidance, our engineering team provides technical assistance to ensure the chosen solution integrates seamlessly into your machinery.

PAN India Delivery

We serve customers across India with reliable logistics support, helping minimize procurement delays for both standard and project-based requirements.

Competitive Pricing

Our pricing is structured to deliver value without compromising on quality, making us a preferred partner for OEMs, machine builders, and industrial users.

OEM & Bulk Supply

We support original equipment manufacturers, automation system integrators, and industrial distributors with scalable supply solutions and bulk order capabilities.

Fast Dispatch

Available models are dispatched promptly to help customers reduce downtime and keep projects on schedule.

Engineering Assistance

Whether you are designing a new machine or upgrading existing equipment, our engineers can recommend the appropriate indexing plunger based on application, operating environment, and performance requirements.

FAQs about Indexing Plunger

What is an indexing plunger?

An indexing plunger is a spring-loaded mechanical positioning component used to accurately locate, lock, or secure movable machine parts. It consists of a threaded body, a locking pin, a compression spring, and an operating knob or pull ring.

When the knob is released, the spring automatically pushes the pin into a matching locating hole, ensuring repeatable positioning. Indexing plungers are widely used in fixtures, machine tools, packaging equipment, conveyor systems, robotics, and automation machinery where quick manual adjustment and reliable locking are required.

How does an indexing plunger work?

An indexing plunger operates using a simple spring-loaded mechanism. In its normal state, the compression spring pushes the locking pin outward into a locating hole, securing the component in position. Pulling the knob retracts the pin, allowing the machine element to move freely.

Once the desired position is reached, releasing the knob automatically re-engages the pin. This process provides fast, repeatable positioning without requiring tools or complex adjustment procedures.

What are indexing plungers used for?

Indexing plungers are used to position, locate, lock, and secure adjustable machine components. Common applications include guide rail adjustments, fixture positioning, rotary indexing tables, machine guards, workholding systems, conveyor stops, inspection fixtures, robotics, and tool changers. They improve positioning accuracy, reduce setup time, and enhance production efficiency in manufacturing environments.

What is the difference between an indexing plunger and a locking pin?

A locking pin is generally inserted and removed manually, whereas an indexing plunger incorporates an internal spring that automatically engages the pin when released. This automatic operation provides faster adjustments, improved repeatability, and greater convenience. Indexing plungers are particularly beneficial in applications requiring frequent positioning changes.

Which material is better: steel or stainless steel indexing plungers?

The best material depends on the operating environment. Hardened steel indexing plungers are ideal for heavy-duty industrial applications where high strength and wear resistance are essential. Stainless steel indexing plungers are recommended for food processing, pharmaceutical manufacturing, chemical plants, marine environments, and outdoor installations because they offer superior corrosion resistance and hygienic performance.

How do I select the right indexing plunger?

Selection should be based on several factors, including thread size, pin diameter, stroke length, load requirements, operating environment, frequency of adjustment, available installation space, and material compatibility. Engineers should also consider whether corrosion resistance, high-cycle operation, or ergonomic handling is required. Consulting with an experienced supplier helps ensure the most suitable model is chosen.

What industries commonly use indexing plungers?

Indexing plungers are widely used in automotive, food processing, pharmaceutical, chemical, packaging, textile, plastics, electronics, aerospace, renewable energy, and heavy engineering industries. Their versatility makes them suitable for nearly any application requiring accurate positioning and reliable locking.

Can indexing plungers be used outdoors?

Yes. Stainless steel indexing plungers are well suited for outdoor environments because they resist corrosion caused by rain, humidity, and temperature fluctuations. For harsh environments, selecting the appropriate material and protective finish helps maximize service life.

Are indexing plungers suitable for high-cycle applications?

Yes. High-quality indexing plungers are designed for repeated operation and can withstand thousands of engagement cycles when installed correctly and maintained appropriately. Proper alignment, periodic inspection, and keeping the mechanism free from contaminants contribute to long-term performance.

What maintenance do indexing plungers require?

Maintenance requirements are minimal. Regular cleaning, inspection of the locking pin and spring, checking for smooth operation, and light lubrication where appropriate are generally sufficient. Replacing worn components during scheduled maintenance helps prevent unexpected downtime.

Can indexing plungers improve production efficiency?

Yes. By enabling quick and repeatable adjustments, indexing plungers significantly reduce machine setup time and changeover duration. Operators can reposition components rapidly without using tools, allowing production lines to resume operation faster and improving overall equipment effectiveness.

Are indexing plungers easy to install?

Yes. Most indexing plungers feature a threaded body that allows straightforward installation into a tapped hole. Correct alignment with the locating hole is essential to ensure smooth pin movement and reliable engagement. Following the manufacturer’s installation recommendations helps achieve optimal performance.

What is the purpose of the spring inside an indexing plunger?

The compression spring provides the force required to automatically extend the locking pin when the operating knob is released. This automatic engagement ensures dependable positioning without requiring manual insertion of the pin after each adjustment.

Can indexing plungers be customized?

Depending on project requirements, indexing plungers may be available in different thread sizes, pin diameters, body materials, operating knobs, and surface finishes. For specialized OEM applications, discuss your technical requirements with the supplier to determine suitable configurations.

What factors affect the lifespan of an indexing plunger?

Service life depends on operating frequency, load, alignment, environmental conditions, material selection, and maintenance practices. Proper installation, avoiding excessive side loading, and routine inspection help maximize durability and performance.

Can indexing plungers be used in food and pharmaceutical machinery?

Yes. Stainless steel indexing plungers are commonly used in hygienic environments because they resist corrosion and are easier to clean. They are suitable for equipment used in food processing, pharmaceutical production, beverage manufacturing, and packaging systems where cleanliness is a priority.

How often should indexing plungers be inspected?

Inspection frequency depends on operating conditions and usage. For high-cycle industrial machinery, incorporating indexing plungers into routine preventive maintenance schedules is recommended. Regular checks help identify wear, contamination, or reduced spring performance before they affect production.

Why is repeatable positioning important?

Repeatable positioning ensures machine components return to the exact same location after each adjustment. This consistency improves product quality, reduces setup errors, minimizes scrap, and supports reliable production across repeated manufacturing cycles.

Do indexing plungers require lubrication?

Many indexing plungers operate effectively with minimal lubrication. However, in dusty or high-cycle environments, periodic application of a suitable lubricant can reduce friction, protect against corrosion, and extend service life. Always use lubricants compatible with the operating environment.

Why choose Genesis Technomation India Private Limited for indexing plungers?

Genesis Technomation India Private Limited provides high-quality industrial positioning components backed by technical expertise in automation and machine design. Customers benefit from engineering assistance, competitive pricing, PAN India delivery, support for OEM and bulk orders, and guidance in selecting the right indexing plunger for their application.

Looking for High-Quality Indexing Plungers?

Whether you are designing a new machine, upgrading existing equipment, or sourcing reliable positioning components for OEM production, Genesis Technomation India Private Limited is your trusted partner.

We provide:

• High-quality Indexing Plungers
• Expert engineering support
• OEM supply solutions
• Bulk order fulfillment
• Competitive pricing
• Fast PAN India delivery
• Assistance in model selection
• Technical documentation on request

Contact our team today for product recommendations, technical consultation, pricing, or a customized quotation.
