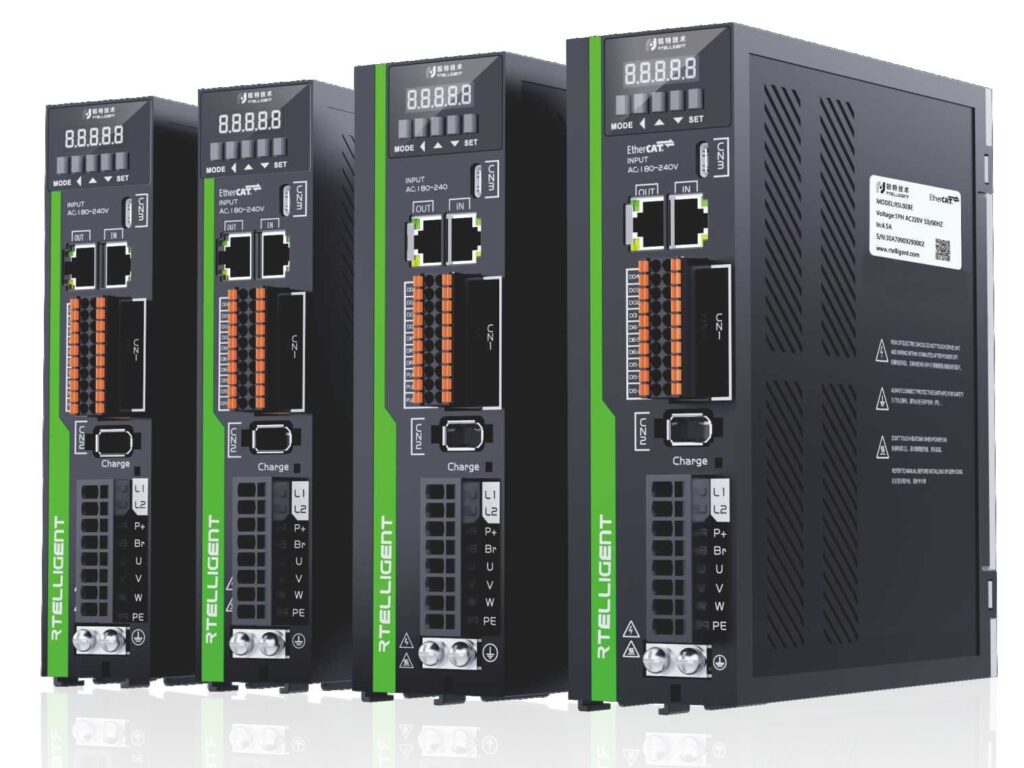

R5 Series AC Servo Drive System
Rtelligent's 5th-generation high-performance servo R5 series is based on a powerful R-AI algorithm and a new hardware solution. With the rich experience Rtelligent has accumulated in servo development and application over the years, it has created a servo system with the characteristics of high performance, easy application, and low cost. The product has a wide range of applications in various high-end automation equipment industries such as 3C, lithium batteries, photovoltaics, logistics, semiconductors, medical, and lasers.
- Power range : O.05kw-2.3kw
- High dynamic response
- Auto Tuning
- Rich IO Interfaces
- STO safety function
- Convenient panel operation
- Power range : O.05kw-2.3kw
- High dynamic response
- Auto Tuning
- Rich IO Interfaces
- STO safety function
- Convenient panel operation
Basic Specifications
| Item | R5L028 | R5L028M | R5L042 | R5L042M | R5L130 | R5L130M |
|---|---|---|---|---|---|---|
| Communication function | - | 485 communication | - | 485 communication | - | 485 communication |
| Overload capacity | Support 3 times overload | Support 2 times overload | ||||
| Applicable power (W) | 50~400 | 50~400 | 600~750 | 600~750 | 1000~2300 | 1000~2300 |
| Rated current (A) | 2.8 | 2.8 | 4.2 | 4.2 | 13.0 | 13.0 |
| Maximum current (A) | 8.4 | 8.4 | 12.6 | 12.6 | 24.0 | 24.0 |
| Input power | Single phase 220VAC ± 10%, 50/60Hz | |||||
| Size code | Type A | Type A | Type B | Type B | Type B | Type B |
| Dimensions (mm) | 175×156×40 | 175×156×40 | 175×156×51 | 175×156×51 | 175×156×51 | 175×156×51 |
| Brake resistor function | No brake resistor | With brake resistor (75W, 50Ω) | ||||
Environmental Specifications
| Item | Requirements |
|---|---|
| Operating temperature | 0°C ~ +45°C |
| Storage temperature | -20°C ~ +70°C |
| Environmental humidity | Working/storage ≤90%RH (no condensation) |
| Vibration resistance | 10~57Hz 3.5mm, 57~150Hz 1g |
| Atmospheric environment | No corrosive gas, flammable gas, oil mist or dust, etc. |
| Altitude | Altitude ≤1000m |
Technical Specifications
| Item | Description |
|---|---|
| Control mode | IPM PWM control, SVPWM drive mode |
| Encoder feedback | Absolute encoder |
| Isolation function | Power supply/communication isolation; encoder input isolation; digital input/output isolation |
| Protection function | Overvoltage, undervoltage, overcurrent, overload, overheating, overspeed, communication abnormality, register abnormality, encoder error, etc. |
| Display and operation |
|
| Parameter setting | Button or RTServoStudioV5 |
| Power-off retention | Keep all optional parameters |
