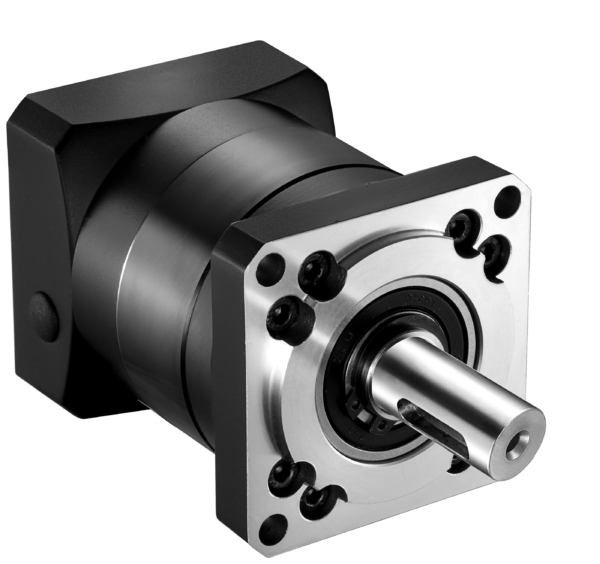

Stepper Motor Planetory Reducer

Gearboxes for stepper motors are mechanical components that reduce the speed and increase the torque of stepper motors. They are especially useful in applications requiring high precision, controlled motion, and improved load-carrying capabilities. Using the right gearbox with your stepper motor helps enhance performance, reduce wear, and increase efficiency.

×

Description



Why You Need a Gearbox for Stepper Motors

  • To increase torque output without increasing motor size
  • To improve resolution and precision in motion control
  • To reduce load on the motor by lowering output speed
  • To extend the life of the motor by avoiding overload conditions
  • To match the speed/torque requirements of your mechanical system

GEARBOX for STEPPER MOTOR NEMA23 (Input Shaft 6/8/10MM)

A B C D E F H L
8 38.1 ≤30 ≤3 66.7 4.1±5 60–80 ≥C–3
Model Ratio Rated Output Torque (Nm)
PRF60-L1-3-NEMA23 3 27
PRF60-L1-4-NEMA23 4 40
PRF60-L1-5-NEMA23 5 40
PRF60-L1-7-NEMA23 7 34
PRF60-L1-10-NEMA23 10 16

GEARBOX for STEPPER MOTOR NEMA34 (Input Shaft 12.7/14MM)

A B C D E F H L
12.7 73 ≤46 ≤5 98.4 5.1±6 90–110 ≥C–5
Model Ratio Rated Output Torque (Nm)
PRF90-L1-3-NEMA34 3 96
PRF90-L1-4-NEMA34 4 122
PRF90-L1-5-NEMA34 5 122
PRF90-L1-7-NEMA34 7 104
PRF90-L1-10-NEMA34 10 56
