Description

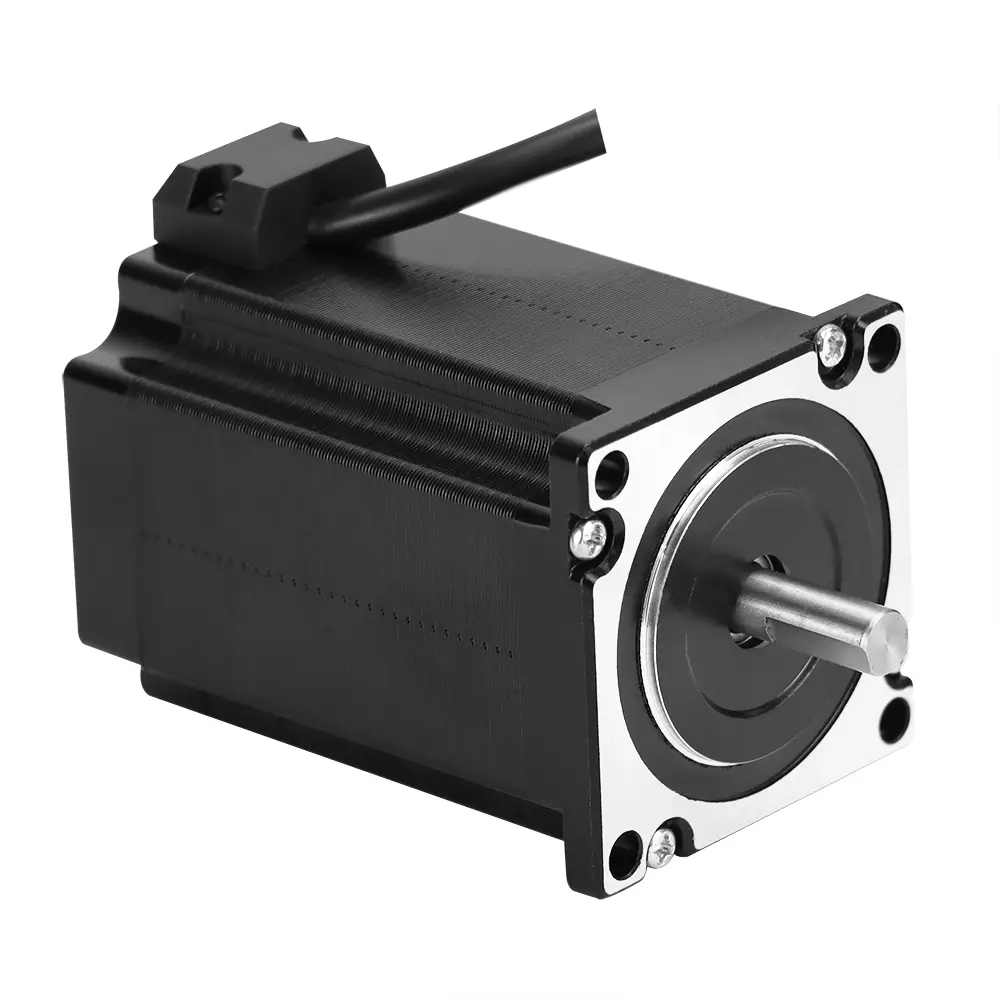

Nema 23 Stepper Motors for High Torque and Precision Motion Control
Nema 23 Stepper Motors are high-performance motion control solutions designed for precision-driven industrial automation, CNC machines, robotics, 3D printers, laser cutting machines, packaging equipment, and medical devices. With a standard 57mm x 57mm frame size, Nema 23 motors deliver high torque output, excellent positioning accuracy, and smooth operation, making them ideal for demanding industrial applications. These motors typically feature 1.8° step angle, high holding torque, low vibration, and customizable winding configurations to match various operational requirements.
At Genesis Technomation, we manufacture and supply high-quality Nema 23 High Torque Stepper Motors designed using advanced technology and premium components. Our motors are engineered to deliver superior efficiency, low vibration, and long operational life, making them suitable for demanding industrial environments. Available in multiple models including 57AM13, 57AM23, 57AM24, 57AM26, 57AM30, D57AM30, 57A3, 57A3-10, D57AM30-30-10, 57AM23ED, and 57AM30ED, our Nema 23 motors meet diverse application requirements with dependable performance and competitive pricing.
What Are Nema 23 Stepper Motors?
Nema 23 Stepper Motors are precision motion control motors with a standard 57mm x 57mm frame size, widely used in industrial automation and high-torque applications. The term “Nema 23” refers to the motor’s faceplate dimensions defined by the National Electrical Manufacturers Association (NEMA), ensuring standardized mounting and compatibility across various machines and systems.
Nema 23 stepper motors operate by dividing a full rotation into multiple precise steps, allowing accurate positioning and controlled movement without requiring complex feedback systems. These motors are known for their high holding torque, excellent speed control, and reliable performance, making them ideal for applications that demand precision and consistency.
Due to their robust construction and efficient performance, Nema 23 High Torque Stepper Motors are commonly used in CNC machines, 3D printers, robotics, laser cutting machines, packaging equipment, textile machinery, and industrial automation systems. Their ability to deliver smooth motion, low vibration, and long operational life makes them a preferred choice for engineers and manufacturers.
Genesis Technomation offers premium-quality Nema 23 Stepper Motors designed to meet diverse industrial requirements, ensuring durability, efficiency, and dependable performance across various applications.
Nema 23 Stepper Motors Models Available
Genesis Technomation offers a wide range of Nema 23 Stepper Motors to suit various industrial requirements:
- 57AM13
- 57AM23
- 57AM24
- 57AM26
- 57AM30
- D57AM30
- 57A3
- 57A3-10
- D57AM30-30-10
- 57AM23ED
- 57AM30ED
These models are available in different torque ranges, current ratings, shaft types, and mounting configurations to meet diverse automation and motion control applications.
Nema 23 Stepper Motors Features
High Torque Output Performance
Nema 23 Stepper Motors are designed to deliver high holding torque, making them suitable for demanding industrial applications. These motors provide strong rotational force, ensuring reliable performance in CNC machines, robotics, automation systems, and other heavy-duty motion control environments. High torque capability allows the motor to handle load variations efficiently without losing steps.
57mm Standard Frame Size
Nema 23 Stepper Motors feature a standardized 57mm x 57mm frame size, which follows NEMA mounting specifications. This standardization ensures easy compatibility with existing systems and simplifies replacement or upgrading processes. The uniform frame size also allows seamless integration into various industrial machines and automation setups.
Smooth and Precise Motion Control
These motors operate by dividing a full rotation into precise steps, offering excellent positioning accuracy and smooth movement. This precision makes Nema 23 Stepper Motors ideal for applications that require controlled motion, such as CNC machines, 3D printers, laser cutting machines, and automated manufacturing equipment.
Low Noise and Low Vibration Operation
Nema 23 Stepper Motors are engineered with advanced internal construction and high-quality components to minimize noise and vibration during operation. This ensures stable performance, reduces wear and tear, and enhances the overall efficiency of machinery, especially in precision-driven environments.
High Efficiency and Low Heat Generation
Designed with optimized winding and magnetic structures, Nema 23 Stepper Motors provide high efficiency while maintaining low heat generation. This improves operational stability, increases motor lifespan, and ensures reliable performance even during continuous operation in industrial applications.
Long Operational Life
Built using premium-quality materials and advanced manufacturing techniques, Nema 23 Stepper Motors offer long service life. Their durable construction and robust design reduce maintenance requirements and ensure consistent performance over extended operating hours.
Compact and Rugged Design
Despite delivering high torque, Nema 23 Stepper Motors maintain a compact structure that saves installation space. Their rugged construction ensures durability and resistance to harsh industrial environments, making them suitable for heavy-duty and continuous operation.
Multiple Shaft Configurations Available
Nema 23 Stepper Motors are available with different shaft configurations such as single shaft, double shaft, flat shaft, and customized shaft designs. This flexibility allows users to choose motors based on their specific application requirements.
Compatible with Various Stepper Drivers
These motors are compatible with a wide range of stepper motor drivers and controllers, making them easy to integrate into different motion control systems. This compatibility provides flexibility in system design and improves operational efficiency.
Easy Installation and Integration
With standard mounting dimensions and simple wiring configuration, Nema 23 Stepper Motors are easy to install and integrate into existing systems. Their plug-and-play capability reduces installation time and ensures smooth setup for industrial automation and motion control applications.
Nema 23 Stepper Motor Technical Specifications
| Model | Step angle (°) | Holding torque (N.m) | Rated current (A) | Resistance/Phase (Ohm) | Inductance/Phase (mH) | Rotor inertia (g·cm²) | Shaft diameter (mm) | Shaft length (mm) | Length (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 57AM13 | 1.8 | 1.3 | 3.0 | 0.42 | 1.5 | 260 | 8 | 21 | 55 | 0.67 |
| 57AM23 | 1.8 | 2.3 | 5.0 | 0.64 | 2.7 | 460 | 8 | 21 | 76 | 1.03 |
| 57AM24 | 1.8 | 2.4 | 5.6 | 0.41 | 2.0 | 460 | 8 | 21 | 80 | 1.11 |
| 57AM26 | 1.8 | 2.6 | 5.0 | 0.47 | 2.1 | 520 | 8 | 21 | 84 | 1.20 |
| 57AM30 | 1.8 | 3.0 | 5.0 | 0.82 | 3.7 | 720 | 8 | 21 | 102 | 1.48 |
| D57AM30 | 1.8 | 3.0 | 5.0 | 0.50 | 2.2 | 690 | 8 | 21 | 86 | 1.39 |
Applications of Nema 23 Stepper Motors
Nema 23 Stepper Motors are widely used in:
- CNC Machines
- 3D Printers
- Robotics Systems
- Laser Cutting Machines
- Pick & Place Machines
- Textile Machinery
- Medical Equipment
- Automation Equipment
- Packaging Machines
- Engraving Machines
- Semiconductor Equipment
- Printing Machines
These motors provide high accuracy, reliable positioning, and smooth motion, making them ideal for precision-based applications.
Nema 23 Stepper Motors Advantages
- Excellent Speed Control
- Precise Positioning Accuracy
- High Holding Torque
- Low Maintenance
- Energy Efficient
- Long Life Performance
- Compact Design
Nema 23 Stepper Motors Price in India
The Nema 23 Stepper Motors price varies depending on:
- Torque Requirement
- Current Rating
- Shaft Type
- Motor Length
- Custom Features
We offer competitive pricing for bulk orders and OEM requirements. Contact Genesis Technomation for the best quotation.
Industries We Serve for Nema 23 Stepper Motor
- Automation Industry
- Robotics Industry
- CNC Machine Manufacturers
- Textile Industry
- Medical Equipment Manufacturers
- Packaging Industry
- Semiconductor Industry
- Printing Industry
Why Choose Genesis Technomation for Nema 23 Stepper Motors
- Trusted Nema 23 Stepper Motors Manufacturer
- High Torque & Precision Engineering
- Competitive Nema 23 Stepper Motors Price
- Custom Design Available
- Bulk Supply Capability
- Fast Delivery Across India
- Technical Support Available
- Quality Tested Motors
Genesis Technomation is a leading Nema 23 Stepper Motors Manufacturer and Supplier in India, offering reliable and durable stepper motor solutions for industrial automation and motion control applications.
How Nema 23 Stepper Motors Are Different from Other Nema Stepper Motors
Nema 23 Stepper Motors offer a balanced combination of size, torque, and performance, making them suitable for medium to heavy-duty automation applications. Compared to other Nema motors, Nema 23 motors provide higher torque than Nema 17 Stepper Motors, which are typically used for light-duty applications like 3D printers and small robotics.
When compared to Nema 34 Stepper Motors, Nema 23 motors are more compact and energy-efficient, while Nema 34 motors are designed for heavy-duty industrial machinery requiring higher torque. Similarly, Nema 42 Stepper Motors and Nema 43 Stepper Motors are much larger and used in heavy industrial equipment, offering significantly higher torque but requiring more installation space and power.
Overall, Nema 23 Stepper Motors are widely preferred for CNC machines, automation systems, and robotics because they provide the ideal balance between performance, size, and cost.
FAQs about Nema 23 Stepper Motor
What is Nema 23 Stepper Motor?
Nema 23 Stepper Motor is a 57mm frame size motor designed for high torque and precision motion control applications.
What is the torque range of Nema 23 Stepper Motors?
Torque varies depending on model and configuration, typically ranging from low to high torque industrial applications.
Where are Nema 23 Stepper Motors used?
They are commonly used in CNC machines, robotics, 3D printers, and industrial automation systems.
Do you provide custom Nema 23 Stepper Motors?
Yes, Genesis Technomation offers customized Nema 23 Stepper Motors based on application requirements.
Are you Nema 23 Stepper Motors manufacturer in India?
Yes, Genesis Technomation is a trusted Nema 23 Stepper Motors manufacturer and supplier in India.

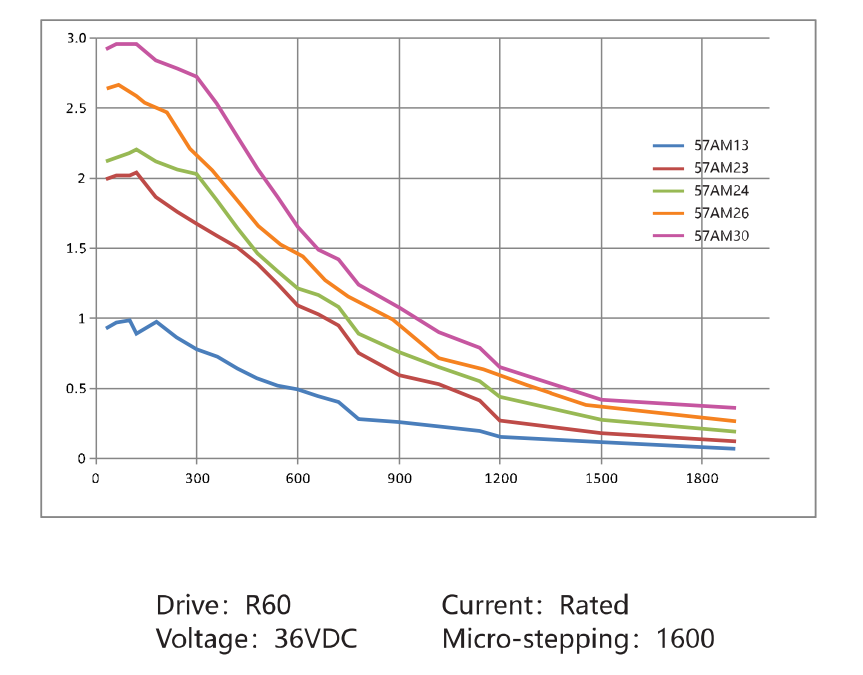

Torque-frequency Curve
