Description
Product Model Numbers
| Model Numbers | ||
|---|---|---|
| WLS15HXDW0360LS24C2BSZ | WLS15HXDW0640LS24C2BSZ | WLS15HXDW0920LS24C2BSZ |

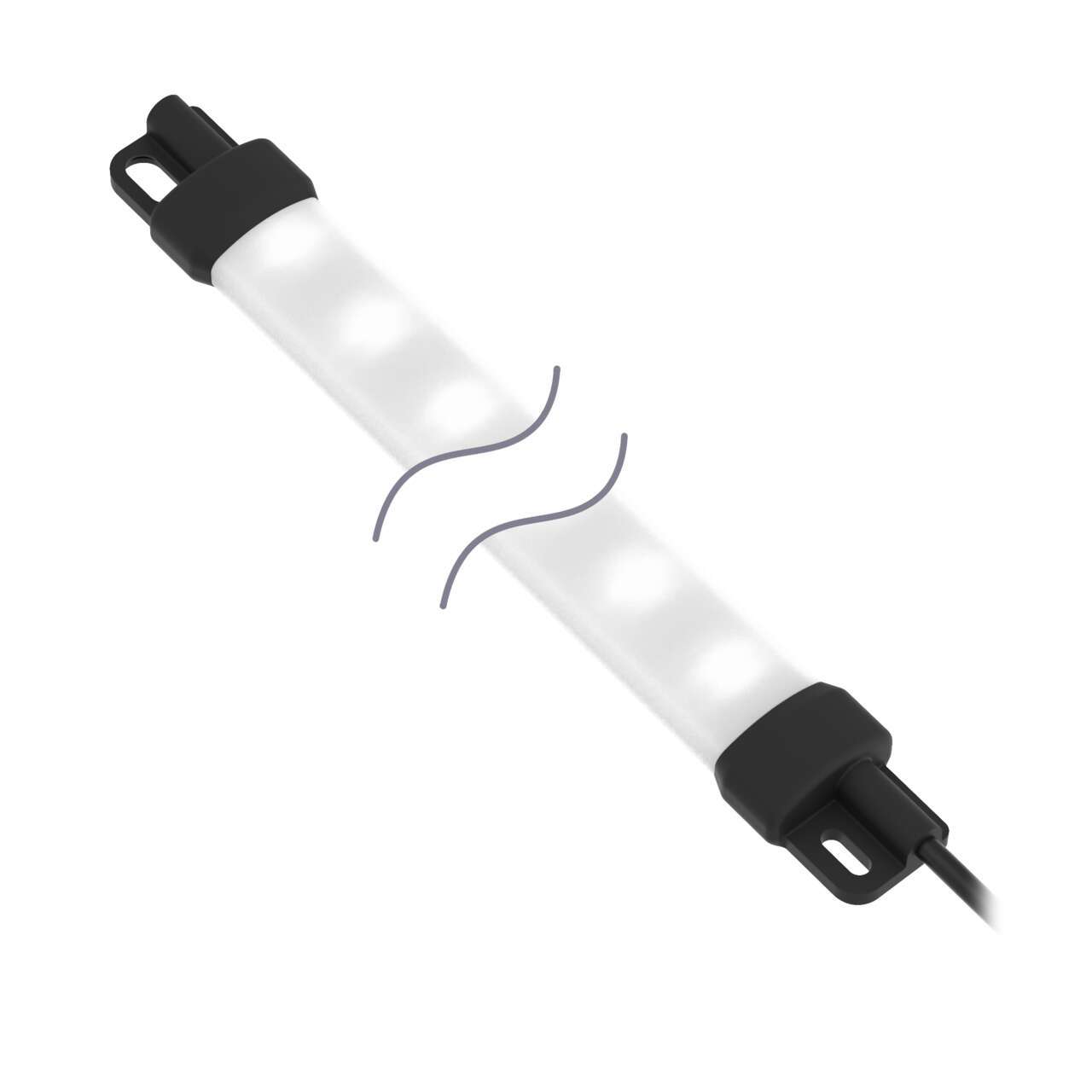

WLS15 High Intensity Light Strip
Window: Light Diffuse Window
Length: 360 mm
Voltage: 24 V dc
Environmental Rating: IP65
Color: DW
Cascadable: Non-Cascadable
Cable: 2 m (6.5 ft) Integral Cable
UL Rating: BSZ NON-UL
Part Number: 814579
Technical Specifications
| Specification | Details |
|---|---|
| Power | DC |
| Cable Length (m) | 2 |
| IP Rating | IP65 |
| Display | No |
| Supply Voltage | 24 V dc |
| Housing Style | Linear Strip |
| Primary Housing Material | Polycarbonate |
| Illumination | Yes |
| Mounting Thread | No Thread |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number of Colors | 1 |
| Product Size (mm) | 15 |
| Color Technology | Standard LED |
| Color Option 1 | Daylight White |
| Connection | Cable |
| Lumens Color 1 | 750 |
| Color 1 – Wavelength/Color Temp/Coordinates | 5000K (Daylight) |
| Max Current Color (mA) | 360 |
| Dimming Option | High-Low-Off |
| Number of Input Pins/Conductors | 3 |
| Illuminated Length (LxWxH mm) | 286.4 |
| Physical Dimensions (LxWxH or DxH mm) | 360.0 x 30.6 x 15.5 |
| Environmental Rating | IP66; IP67 |
| High Temperature (up to 100° C) | 50 |
| Min Op. Temperature (°C) | -40 |
| Storage Temp (°C) | -40 to 70 |
| Primary Window Material | Polycarbonate Diffused |
| Secondary Material | Polyamide |
| Feature: Audible | No |
